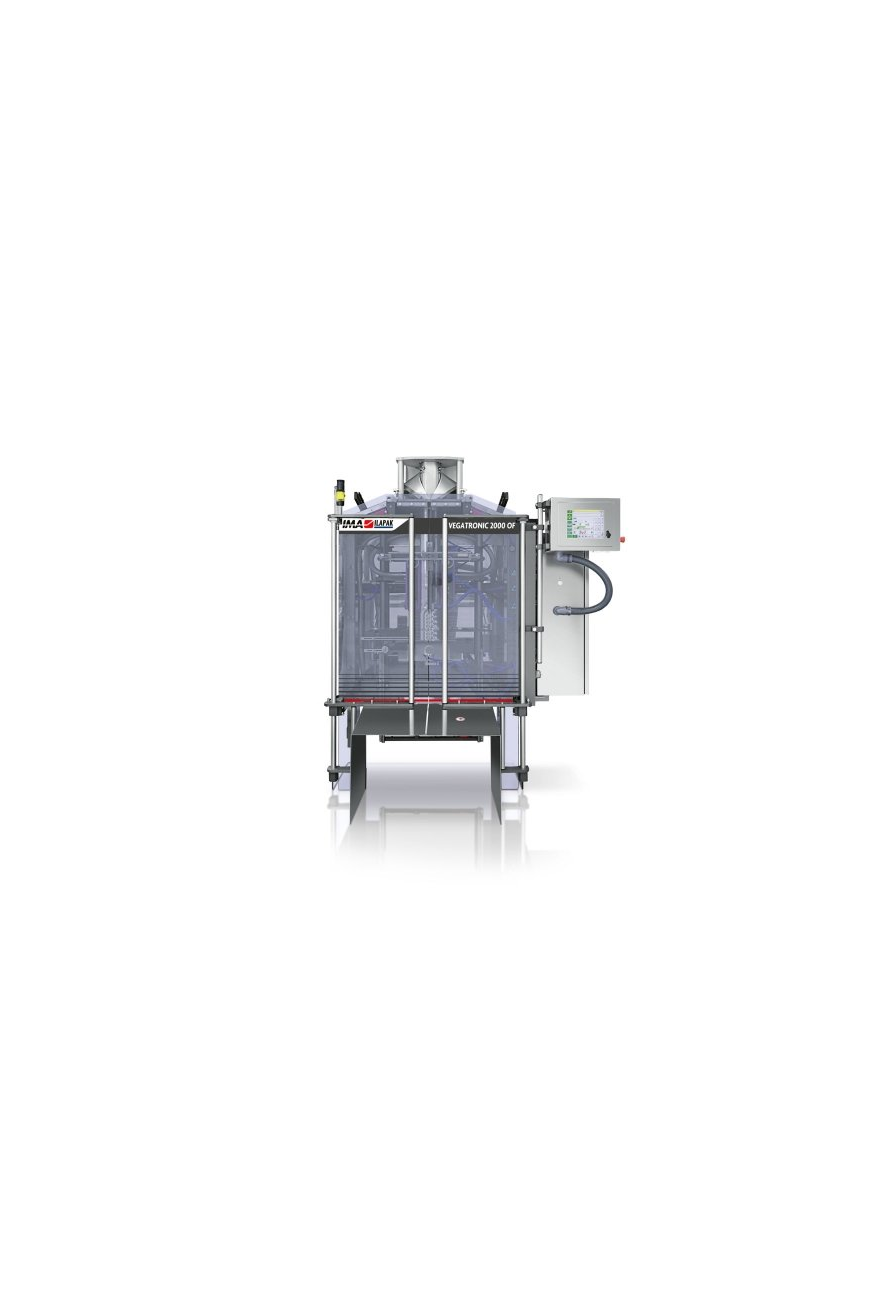

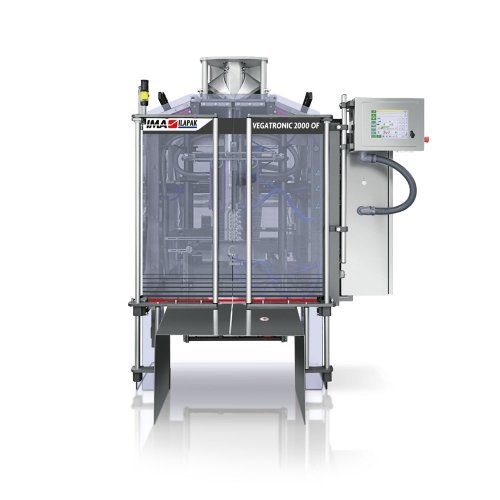

VEGATRONIC 2000 OF
Ilapak’s Vegatronic 2000 Open Frame is today’s most innovative and high-tech VFFS machine. It’s a high-quality, high-end range machine with excellent sanitary design. Ideal to run a wide variety of pack styles including Doy shark packs and transverse zipper bags in industries such as Dairy, Bakery, Confectionery, Snacks and many others.
Additional information
- Machine Speed 120 cpm.
- Wrapping Materials heat sealable materials, such as polypropylene, barrier films, laminates, polyethylene films, as well as paper based and recyclable films.
- Sealing System*:
- Vertical seal bar Horizontal heat-seal jaw.
- Ilaseal or Ilatherm jaws.
- Both S & P system.
- Electronic Platform. Commercial industrial PC with separate HMI and commercial I/O board for USA & Canada, Allen Bradley platform as an option.
- Program Memory 100+ programs.
- HMI 12” HMI colour touch screen TFT SVGA resolution.
- Power Requirement 400 Vac+/-5%, 3 ph, neutral, GND, 50/60 Hz, 9.5 kW, 13 A.
- Compressed Air up to 125 l/min at 5 bar - 72,5 psi up to 225 l/min at 5 bar - 72,5 psi Same as per S or P.
- Machine Handing Right hand version, left hand version.
- Machine Dimensions (Width x Depth x Height) 1930 x 2000 x 1710 mm - 76”x 79” x 67.25”.
- Machine finish Electrostatic epoxy powder coating- Stainless steel*.
- Machine Weight 1400kg - 3100 lbs.
BAG SIZE
- length 580mm-22.8”.
- width min 50mm-2.0’’.
- width max 420/430*mm-16.5/16.9*” 410/420*mm-16.1/16.5*”. Same as per S or P.
FILM REEL DIMENSIONS
- Reel width man 880/930*mm-34.6/36.6*.
- reel outer ø max 550mm-21.6’’.
- reel core ø max 76mm-3.0’’.
Film Reel Max Weight 100kg.
* Brushless motor driven horizontal sealing jaws-pneumatic vertical seal bar.
