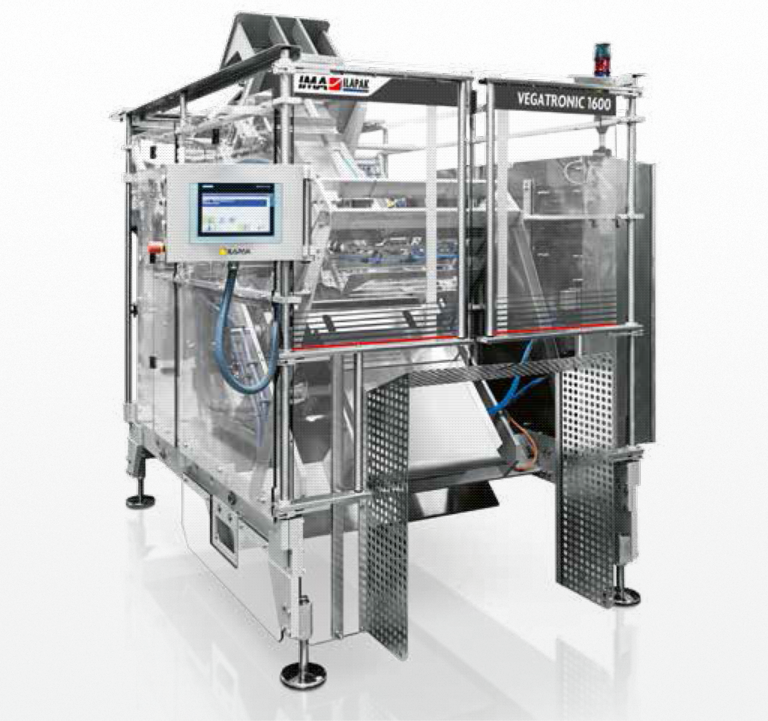

VEGATRONIC 1600 INCLINED
Ilapak’s Vegatronic 1600 INCLINED is the ideal intermittent machine for gentle-handling of large bags in a variety of pack styles for both retail and food-service applications.
Additional information
- Machine Speed 50 cpm.
- Wrapping Materials Heat sealable materials (laminate, co-extruded, recyclable, etc.), polyethylene.
- Electronic Platform Omron PLC, Allen Bradley PLC*, Siemens PLC*.
- Program Memory 40 programs.
- HMI Colour TFT 6” touch screen, Allen Bradley*, Siemens*.
- Power Requirement 400 Vac±5%, 3 ph, neutral, GND, 50/60 Hz, 8.7 kW, 12.5 A.
- Compressed Air up to 125 l/min at 5 bar (72.5 psi), up to 225 l/min at 5 bar (72.5 psi) for LDPE.
- Electrical cabinet Right-hand version, left-hand version*.
- Machine dimensions (W x D x H) 2083 x 2785 x 2168 mm (82.25 x 109.75 x 85.5 ”).
- Machine finishing Electrostatic epoxy powder coating, stainless steel*.
- Machine Weight 2200 kg (4850 lb).
BAG DIMENSIONS
- Max. width 580 mm (22.75”), 570 mm (22.5”) for LDPE.
- Min. width 100 mm (4”).
- Max. length** 680 mm (26.75”).
FILM REEL DIMENSIONS
- Max. width 1180 mm (46.5”).
- Max. outer diameter 500 mm (19.75”).
- Core diameter 76 mm (3”), 152 mm (6”)*.
* optional
** greater length feasible on request
