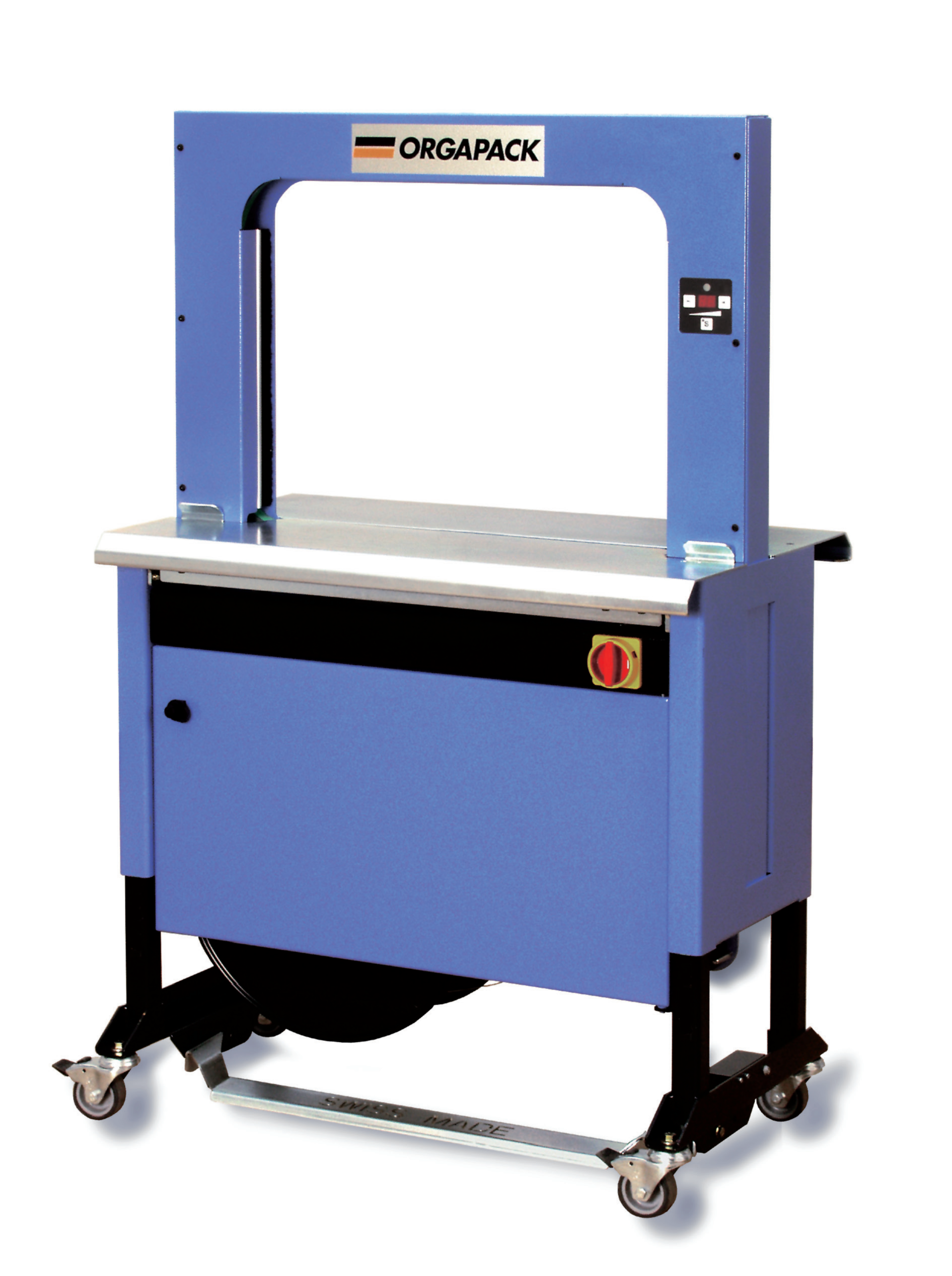

OR-M 510
OR-M 510/15
Up to 70 cycles per minutes, for 5, 9 and 12 mm plastic strap. With inside integrated strap dispenser or outside strap dispense.
For medium-sized to large packages:
· OR-M 510: With integrated dispenser. Strap width 5 mm.
· OR-M 515: With integrated dispenser. Strap width 9/12 mm.
Additional information
- Heat weld sealing preheating time 30 s.
- Electrical supply Single phase. AC 230 V / 50 Hz, 1PNE and 115 V / 60 Hz, 1PNE.
- Room temperature 10 - 40°C.
- Relative humidity 10 - 65%.
- Cycles per minute up to* (without conveyor) 70/min.
- Machine weight 170 kg.
- Color Blue 1M 4762.
- Without IP protection.
Packages
- Width x height min. 100 x 20 mm
- Arch dimension /. 50 mm
- Weight max. 35 kg
Plastic Strap (PP)
- Strap width 5 mm, 9 mm, 12 mm.
- Strap thickness 0,40 - 0,60 mm.
Strap coil
- Ø inside 200 mm.
- Outside 430 mm.
Strap tension
- 5 mm 300 N,
- 9 - 12 mm 450 N.
