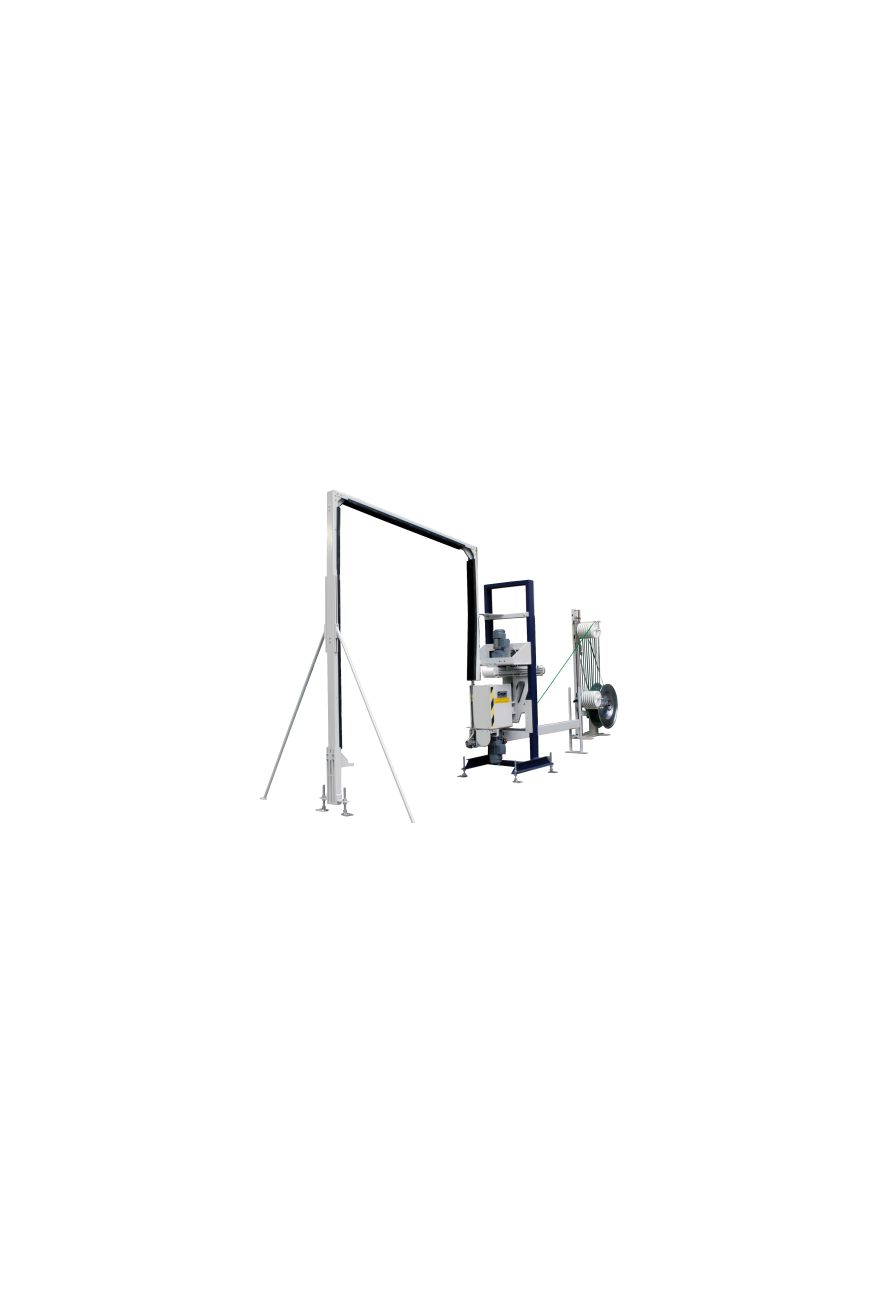

XF / XP 112 M
Fully automatic strapping of vertical pallets, side sealing
The strapping machine XF / XP 112 M is a fully automatic strapping machine for vertically strapping large quantities of pallets of differing dimensions with PP or PET strap. The machine is equipped with a side sealer. This system is reliable, easy to use and can even be installed in limited spaces.- For PP and PET strap
- Vertical strapping with side sealer
- Tension up to 5,500 N
- Siemens PLC S7
- Compact, minimal space required
- Easy access to all the mechanical components
- Simple to use with the Touch screen
Additional information
Function
- The load is conveyed into the required strapping position and the strapping cycle is automatically activated.
- The strap in the strapping chute moves around the load, is optimally tensioned, sealed and cut off.
- The process is repeated depending on the number of cycles per load.
Main specification
- Adaptable to conveyor heights from 150 to 950 mm.
- Strap chute frame according to the principle of the raster technique, suitable for: Load widths: 300 to 2,000 mm Load heights: 300 to 3,000 mm.
- Strapping head movement: 500 mm.
- Fully electrically driven. No pneumatics required.
