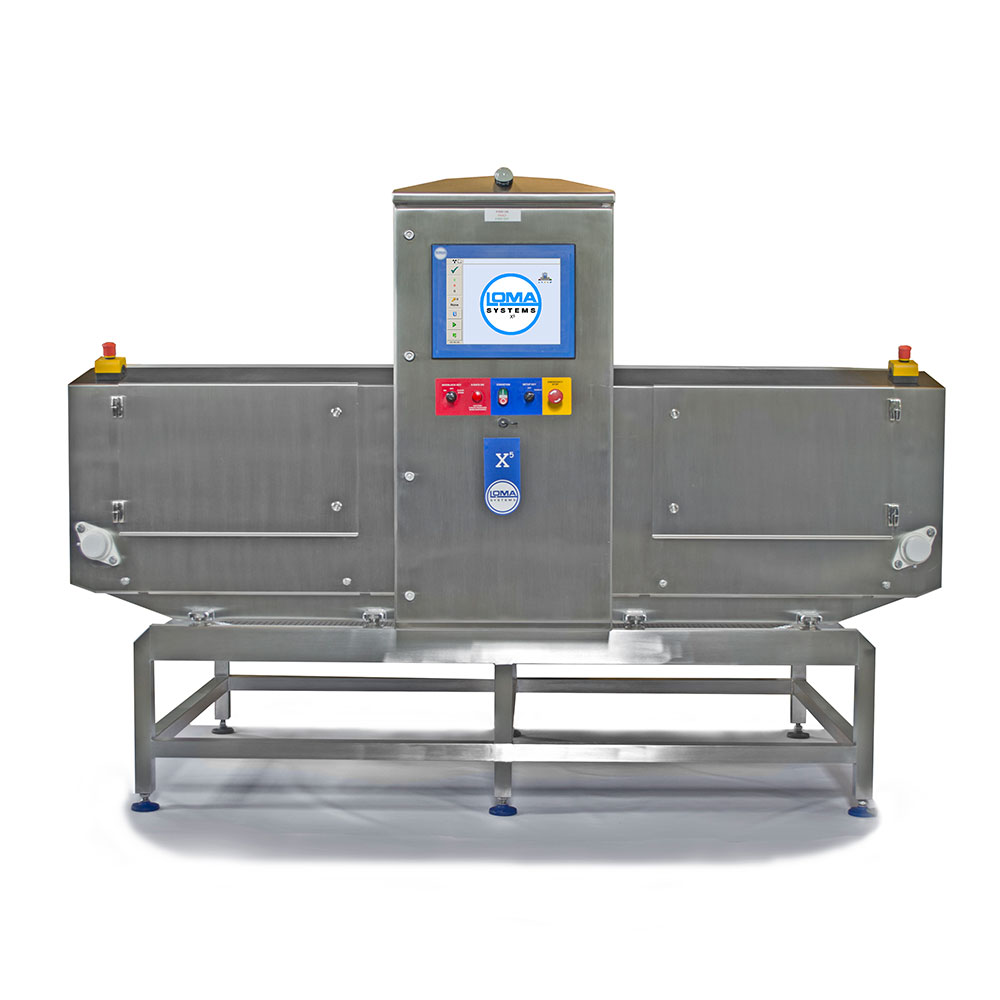

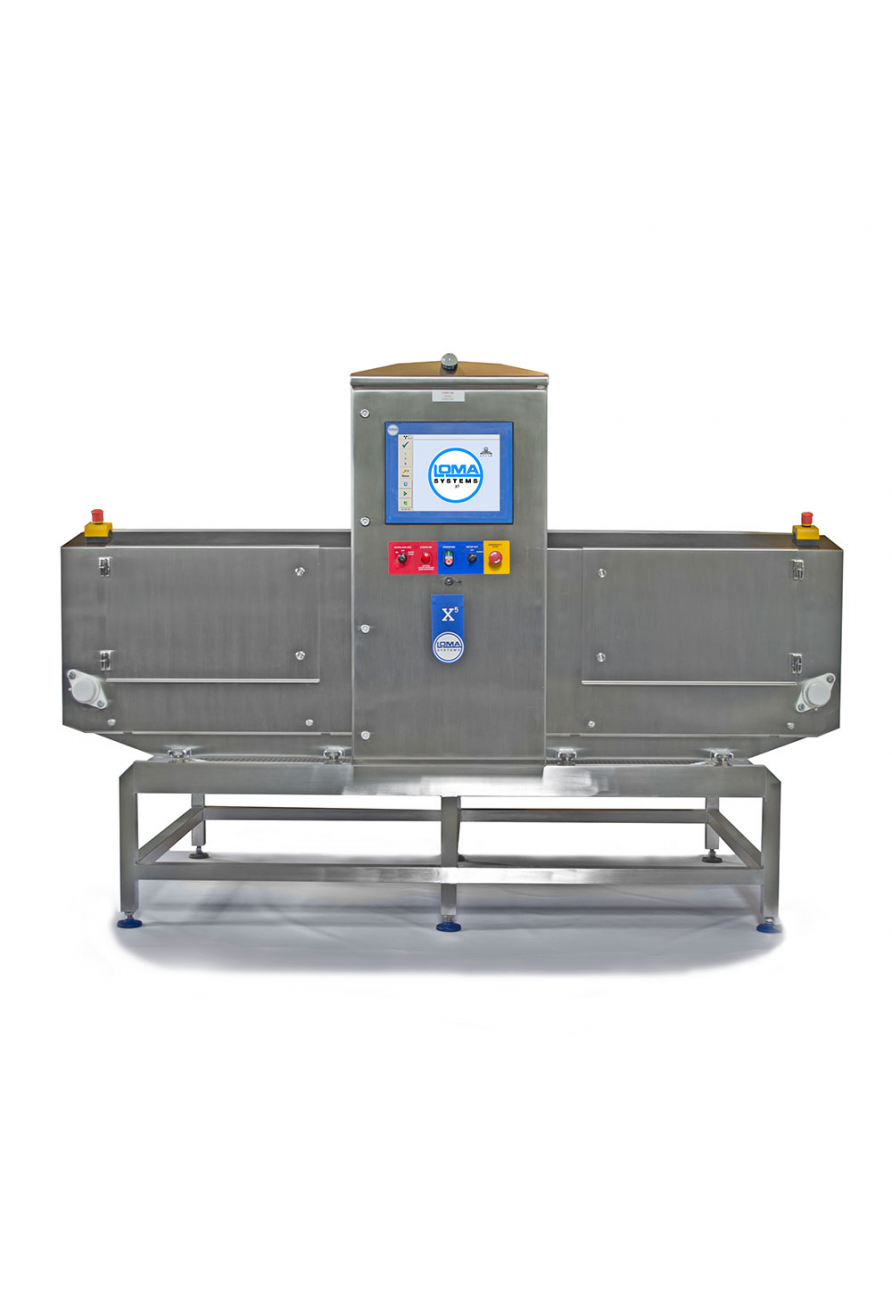

X5 XL800
X5 XL800 X-Ray Inspection
Designed to be integrated into the production process at either the beginning to protect equipment or at the end to protect consumers, the X5 XL 800 is perfect for products such as meat in Euro crates or cheese in bulk boxes. Offering good detection levels on a wide range of contaminants including all metal, bone, glass, dense plastics. The reliable heavy duty conveyor components, built for 24/7 operation with pass key protective Set-up comes integrated with a Windows 10 PC with Modem, Ethernet and front access USB port. Suitable for Large Products, Euro Crates and Bulk Bags from 25 to 100kg Designed to handle sealed large bulk products prior to processing or distribution. Ideal for products such as crates of meat or large cheese wheels.
Additional information
Specifications
- Material of Construction: 304 Brushed stainless steel.
- System Length: 2500mm.
- Line Height Option: 900mm (+/- 50 adjustment).
- X-Ray Output: 240W (80kV 3 mA).
- IP Rating: IP66.
- Belt Width: 800mm.
- Belt Type: Modular.
- Weight on Belt: Up to 100kg.
- Speed Range: 10 - 50 m/min.
- Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth.
- Operating Environment: 0 - 15oC | 32 - 59oF.
- Cooling: 0 - 15oC Vortex, 15 - 40oC Air Conditioner option.
- X-Ray Safety: Leakage less than 1 μSv/h.
- Detection Algorithms: 15 multilayer Algorithms combined in any combinations.
- Reporting: Event, Batch, Shift.
- Data Retrieval: Via USB, Ethernet, Tracs.
