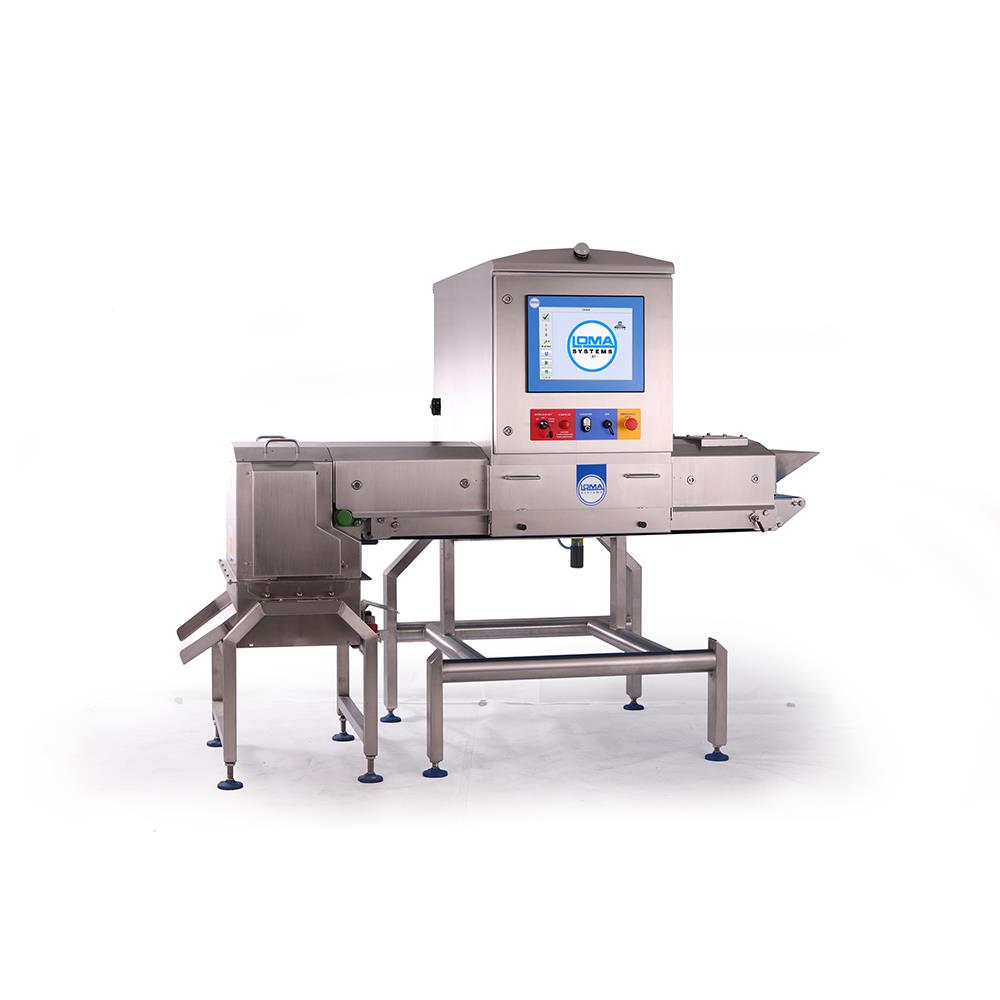

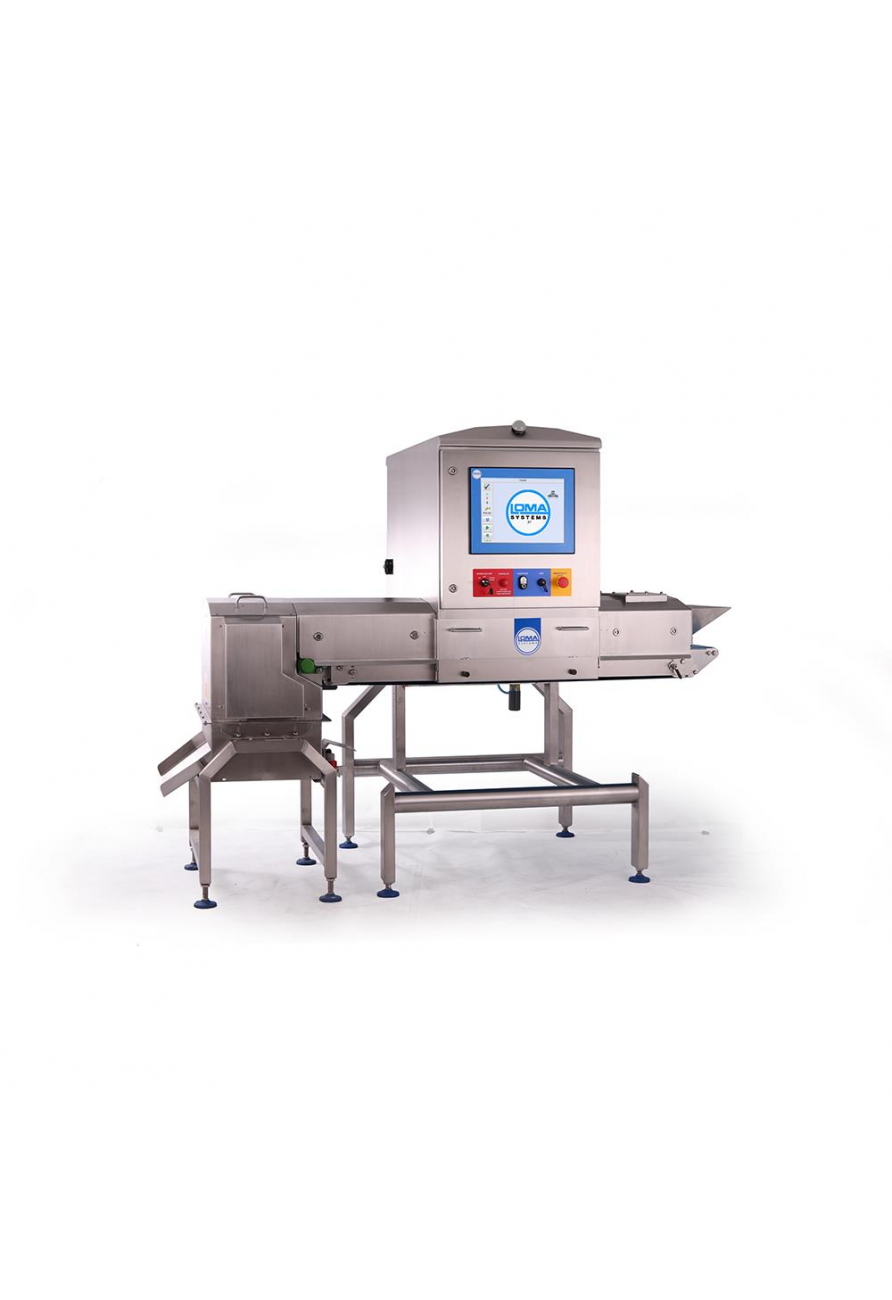

X5 Bulk Flow

X5 Bulk Flow for Loose Food Inspection

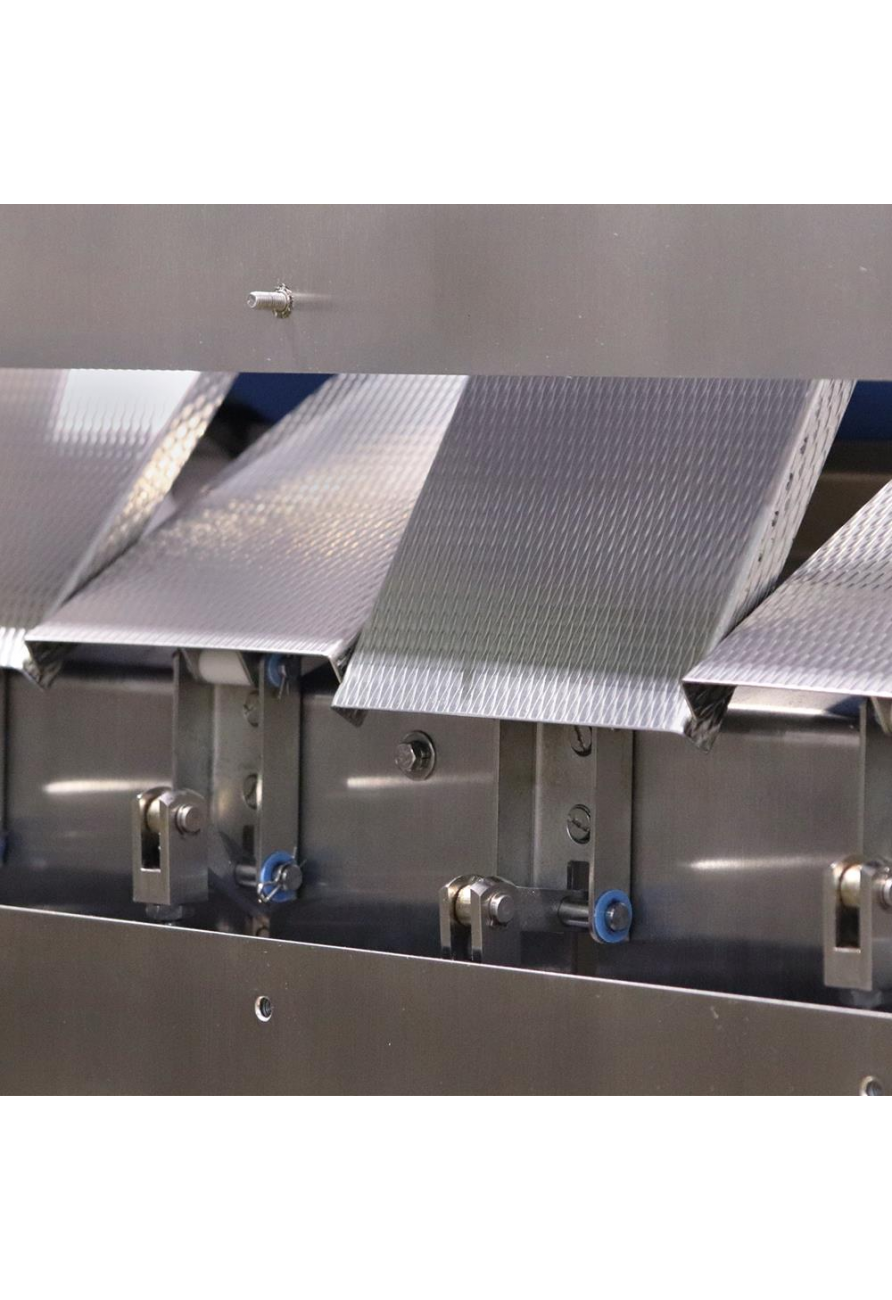

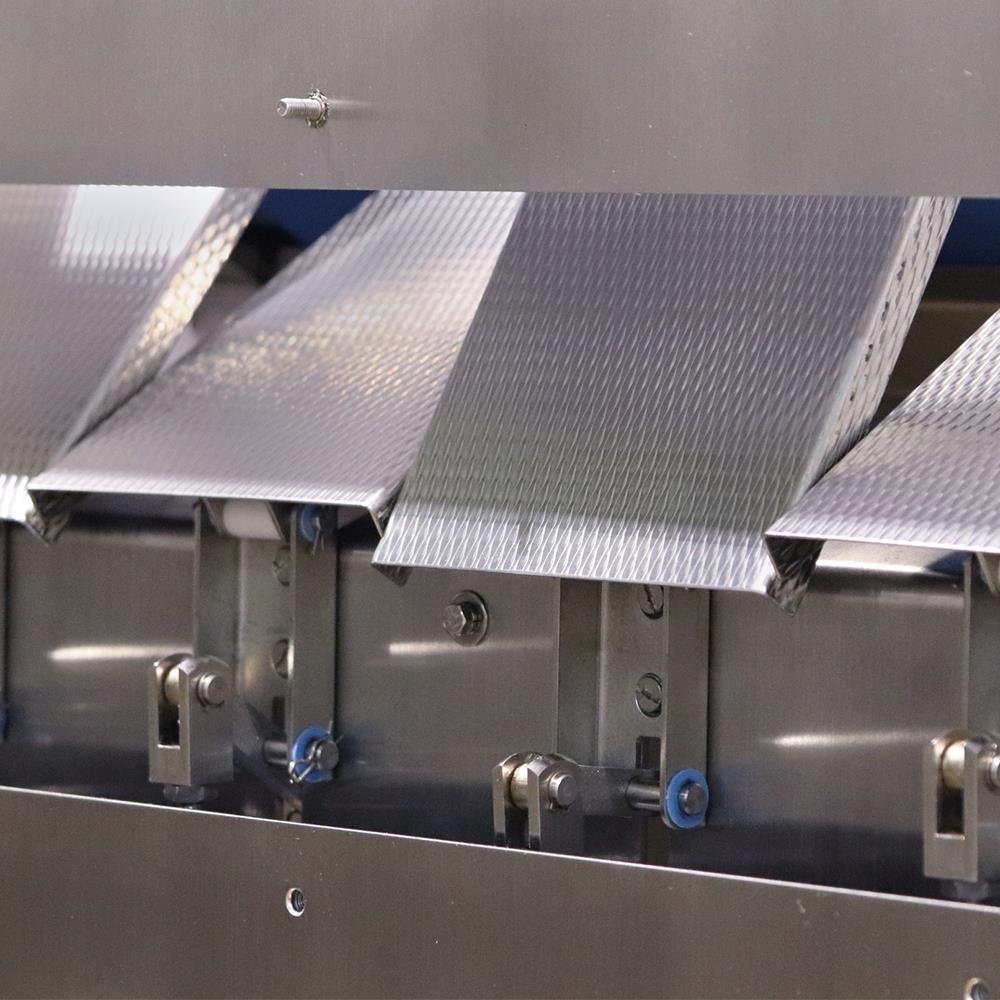

The X5 Bulk Flow is perfect for the inspection of a wide range of free flowing and loose products including cereals, grains and most other loose products. The system, which is available with multiple reject options including carriage retract and multiflap, is capable of offering excellent detection of a wide range of contaminants including all metals, bone, glass, stone and dense plastics. The X5 Bulk Flow includes all of the standard features from the X5 range but has its own upgrades from the previous-generation model including; a quick release belt for easy cleaning, removable reject station, and a 15” touchscreen; all in a small compact footprint designed to maximize the space within the production environment. The free flowing food X-ray inspection system is designed with the operational environment and hygiene in mind, including an IP66 ingress rating.
Additional information

Specifications

  • Material of Construction: 304 Brushed stainless steel.
  • System Length: 2087 mm.
  • Line Height Option: 750 | 800 | 850 | 900 | 950 | 1000 mm (+50/ - 25 adjustment).
  • Product Height: 60 mm (recommended max).
  • Product Width: Belt width dependent.
  • X-Ray Output: 200 W (40kV 5 mA).
  • IP Rating: IP66.
  • Belt Width: 500 mm.
  • Belt Type: PU Anti-static
  • Speed Range: Up to 80 m/min.
  • Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & Earth.
  • Operating Environment: 10 to 35°C , 2 to 10°C with automatic cabinet warm-up enabled.
  • Cooling: Vortex.
  • X-Ray Safety: Leakage less than 1 μSv/h.
  • Reporting: Event, Batch, Shift, PVS.
  • Data Retrieval: Via USB, Ethernet.
