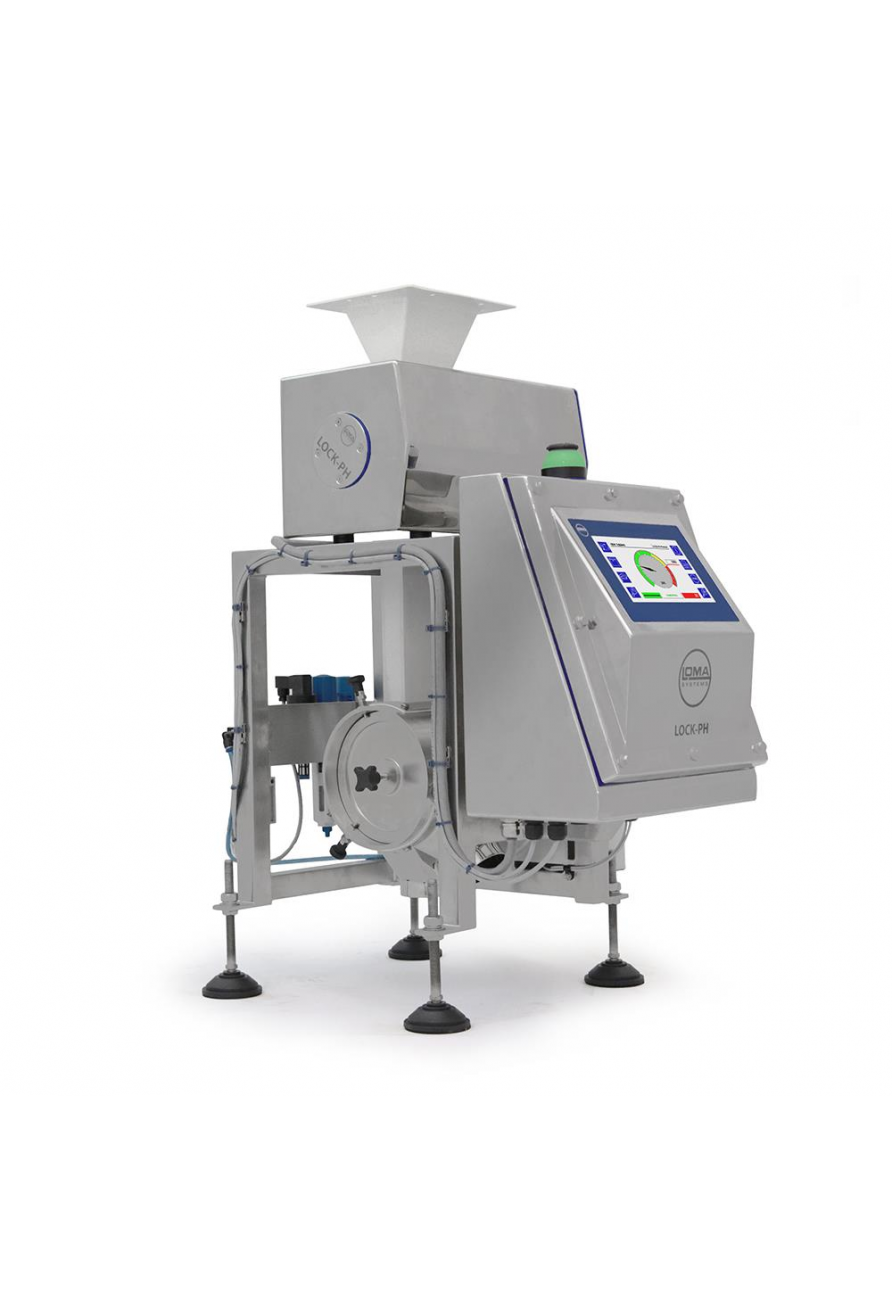

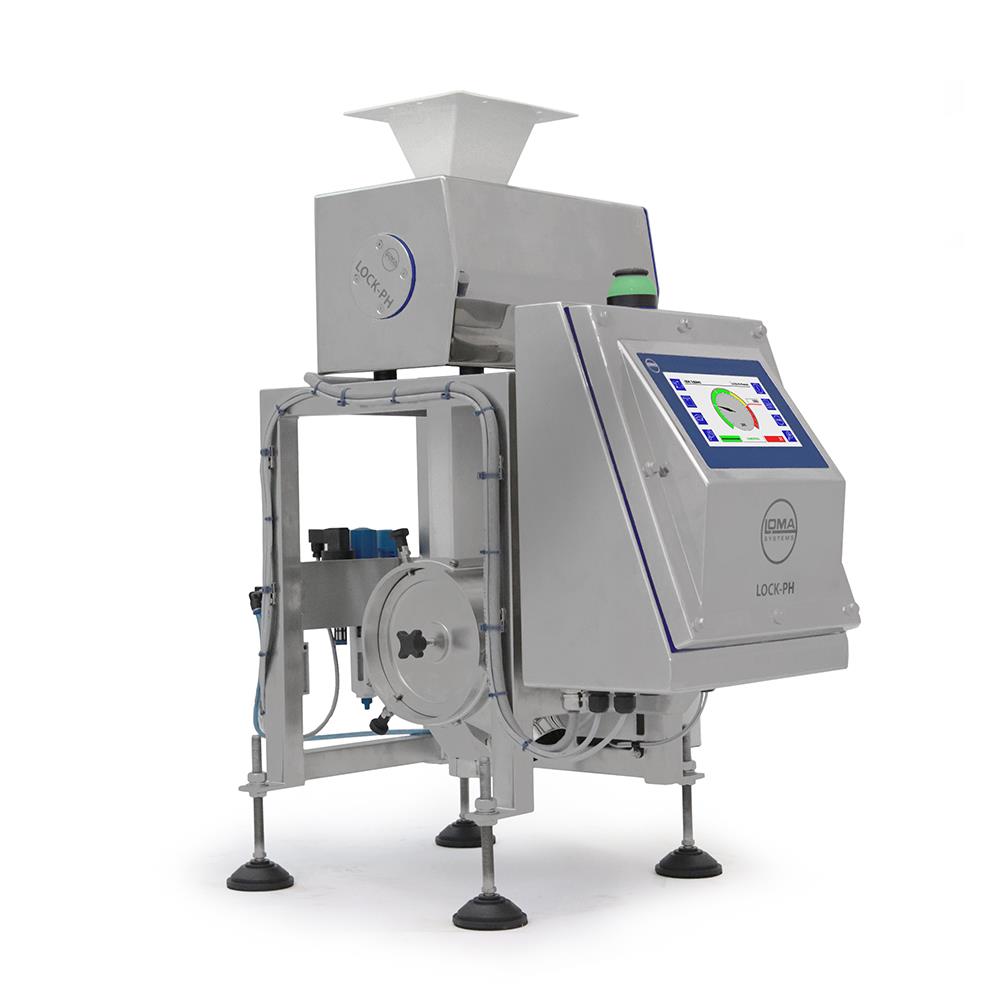

IQ4 LOCK PH Vertical Fall
The IQ4 LOCK-PH Pharmaceutical Vertical Fall Metal Detection system is designed for inspecting powders and granules with a throughput of up to 3000kg per hour with superior and reliable detection performance. The system comes complete with full IQ, OQ & PQ validation documents and material certificates of all contact parts.
Additional information
Specifications
- Material of Construction: 304 mirror polished stainless steel with 316 mirror polished stainless steel reject.
- Single Frequency: 1 MHz.
- Supply Voltages: 85 to 265 V, single phase 50/60Hz, neutral & amp;Earth.
- Power Consumption: 20 VA.
- Temperature Range: -10 to +40 oC (14 to 95 oF).
- Humidity: 0 to 95% Relative Humidity (Non-condensing).
- IP Rating: IP66.
- PVS Enabled: Yes (Sample Test).
- Ethernet Capability: Yes.
- USB Capability: Yes.
