X5C/CW3 Combination system

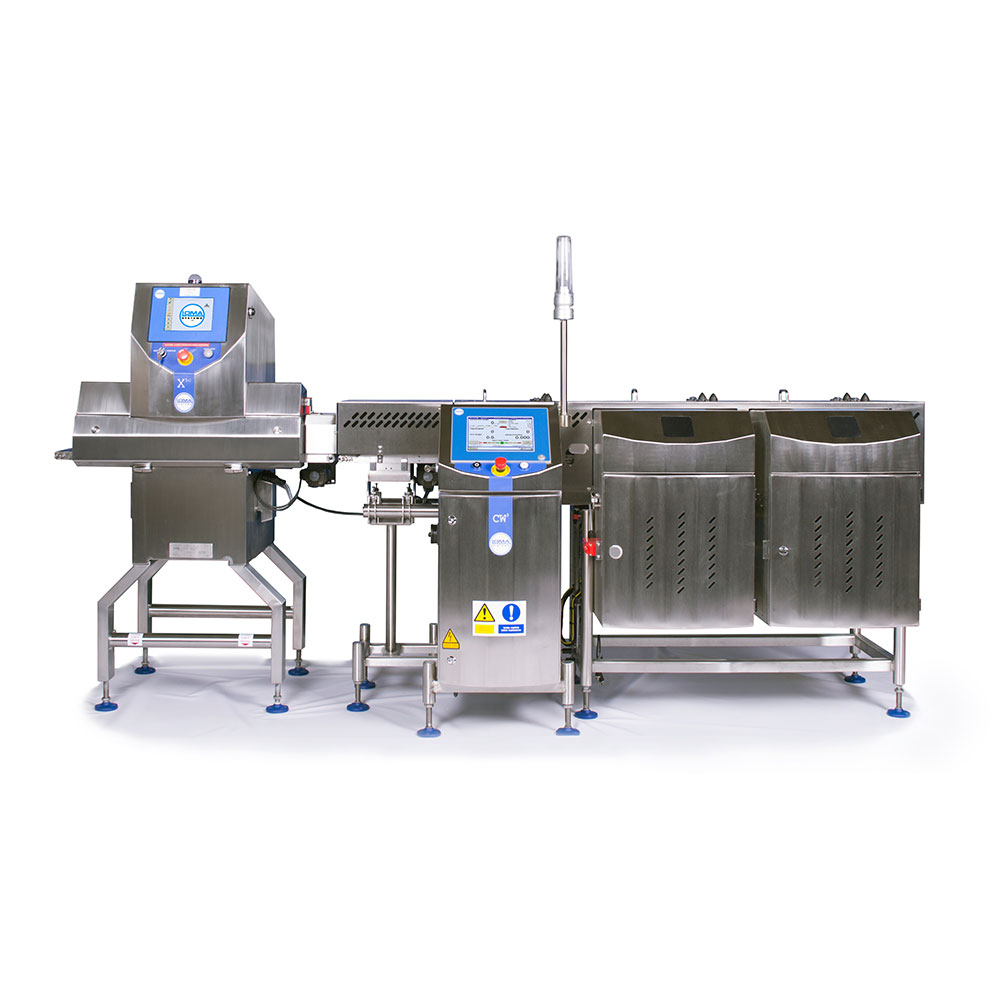

X5C & CW3 Check & Detect Combination System
The X5c & CW3 Check & Detect Combination System is designed for detecting contaminants and reducing giveaway in food products. This system is perfect for inspecting retail-packed convenience food, ready meals in foil trays and small end-of-line packaged goods up to 280mm wide by 110mm high. Consisting of both LOMA’s X5c X-Ray Inspection and CW3 Checkweighing capabilities the system uses linked colour touchscreens complete with icon-driven menu’s for easy operation with integrated machine communication for safe product transfer.
Additional information
Specifications
- Material of Construction: 304 Brushed stainless steel.
- Line Height Option: 700 - 1000mm (±50 adjustment).
- Line Length: 3113 mm.
- Product Height: 110 mm (Recommended maximum).
- Product Length: 280 mm (Recommended maximum).
- Product Width: 280 mm (Recommended maximum).
- X-Ray Output: 80 W (40kV 2 mA).
- Maximum Speeds: 10-50 m/min.
- Power Requirements: 2 x 110 or 230 V, single phase 50/60Hz, neutral & amp;Earth.
- Air Supply: 5 to 8 bar (10 mm Outside dia.) 72-116 psi.
- Cooling: Vortex.
- Operating Environment: 10 to 35 °C with Vortex Cooler (2 to 10 °C with cabinet warm up enabled).
- X-Ray Safety: Leakage less than 1 µSv/h
- IP Rating: IP66.
- Detection Algorithms: 2 x contaminant, 3 x object checking, 2 x image optimisation.
- Belt Type: PU Anti Static.
- Weight Range (g) MID/R51 Approved: 50 - 1500*.
- Weight Range (g) MID/R51 Non-Approved: 10 - 1500*.
- Typical Accuracy (g): 0.18*.
- Reporting: Batch, Shift.
- Data Retrieval: Via USB, Ethernet, Tracs.
*Higher weight capacity available dependent on pack weight.
