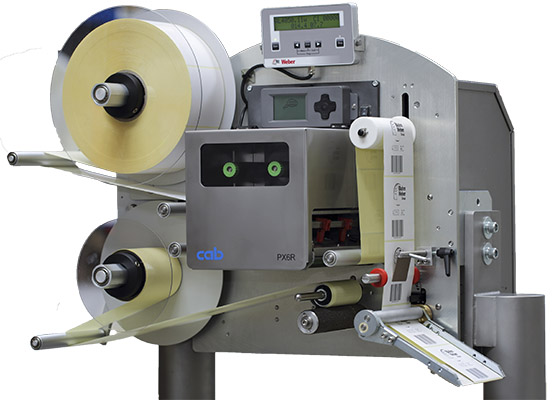

Legi-Air 4050 AC
The new Legi-Air 4050 AC Shuttle Label Print and Apply System is a high-performance labeller for maximum speeds. Systematic refinement of the Alpha Print is evident via a whole series of technical features, making the system a particularly fast labeller, at the same time as ensuring consistently high print quality.
On Print and Apply Systems it is often the print module which determines the working rate. This is not the case with the new Legi-Air 4050 AC Shuttle. A loop device ensures a ready supply of labels which are custom-printed before being dispensed at unusually high speeds onto the passing products. The capacity of this storage device means that even higher cycle speeds of short duration can be achieved. A check is kept on the loop by a dancer roller to ensure there is a supply of labels present. The benefits of this variant are ease of use and the compact system design. Labelling capacity may be up to 20 times greater than printing capacity. Print speeds of up to 16 m per minute and conveyor speeds of up to 50 m per minute can be achieved.
Additional information
Technical specifications
- Print technology Thermal transfer or direct thermal
- Dispensing method Wipe-on
- Print resolution 8 dots/mm (203 dpi), 12 dots/mm (300 dpi), 24 dots/mm (600 dpi)
- Print speed Up to 400 mm per second
- Maximum throughput width 150 mm (option of 173 mm)
- Label sizes Maximum: 148 x 210 mm Minimum: 14 x 20 mm
- Maximum length of dispensing device 300 mm
- Maximum take-off speed 50 m per minute, limited by label format
- Minimum label gap 3 mm
- Label roll 300 mm external diameter with up to 450 running metres, roll core of 76 mm (3“), outside winding, roll end advance warning Option: Inside winding, larger roll core diameter and 350 mm label roll external diameter.
- Weight 65 kg plus (depending on version)
- Electrical connection 91 to 263 VAC, 50/60 Hz, 5 amp
- Ambient conditions Temperature: 10°C to 35°C, 15 to 95% relative air humidity, non-condensing
- Approval CE-mark, optional: GOST-R
