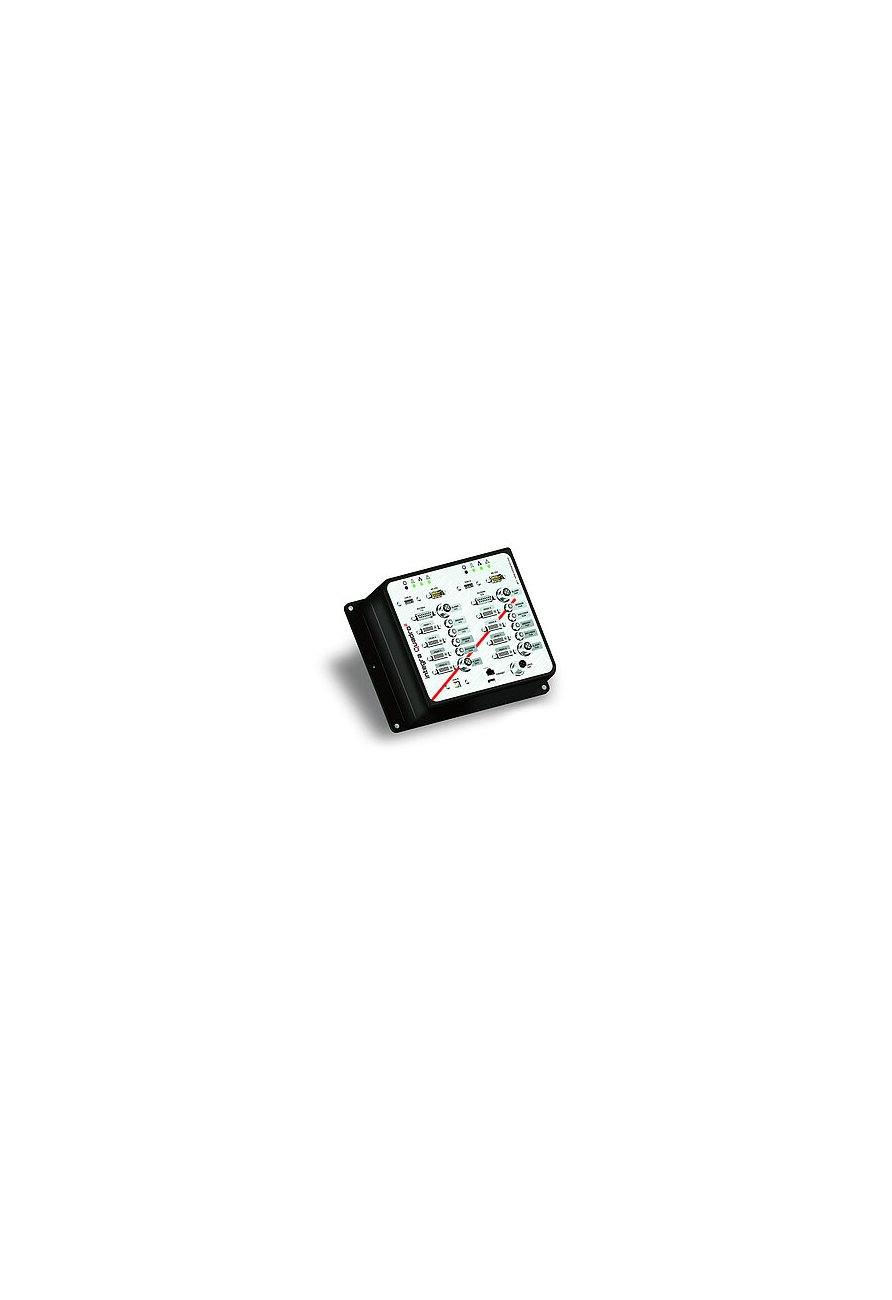

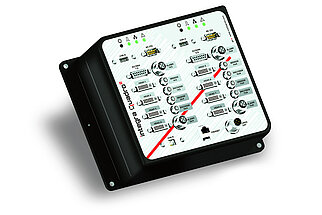

Markoprint integra Quadro² is an inkjet system controller similar to the X4JET, but without a user interface. It is the "big brother" to our Markoprint integra Quadro. Integra Quadro² is ideal for applications where data and task information is entered from another source, whether it is a local PC, network location, PLC or other integrated device.

By controlling up to 8 print heads, integra Quadro² is able to mark packages on two sides, or simultaneously mark products at 4 different production lines. The system is perfectly suited for fixed installation in control cabinets by top hat rail mounting. It has a dual-channel controller that can print on both primary and secondary packaging simultaneously. The controller supports 4 different printing technologies: HP Class, LX Class, MX Class and XR Class.

• Simultaneous marking on primary and secondary packaging
• Controls up to 8 printheads for up to 4 production lines
• Ideal for fixed installation in control cabinets since fully remote-controlled from different interfaces
• Transfer print layouts via network connection, EIA232 or USB
