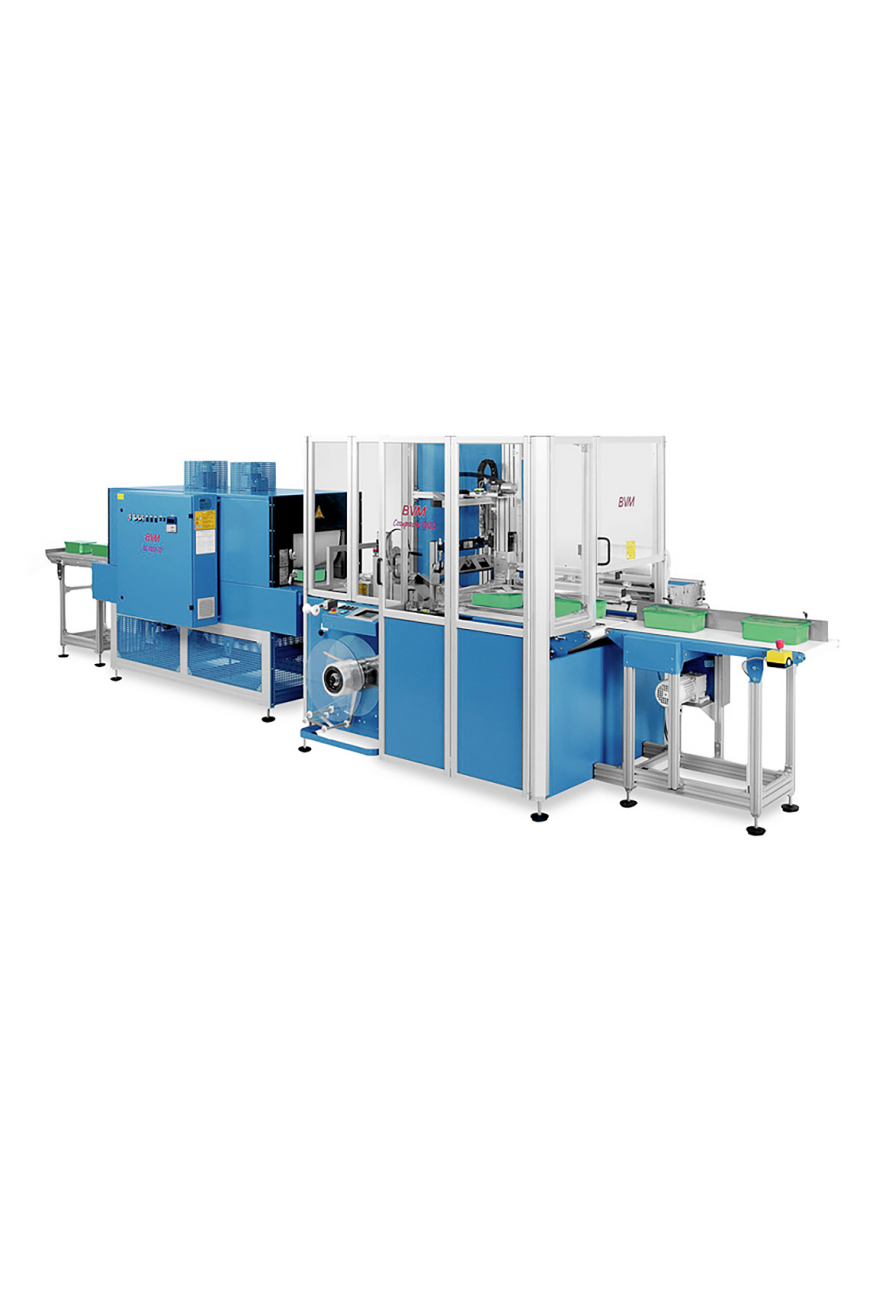

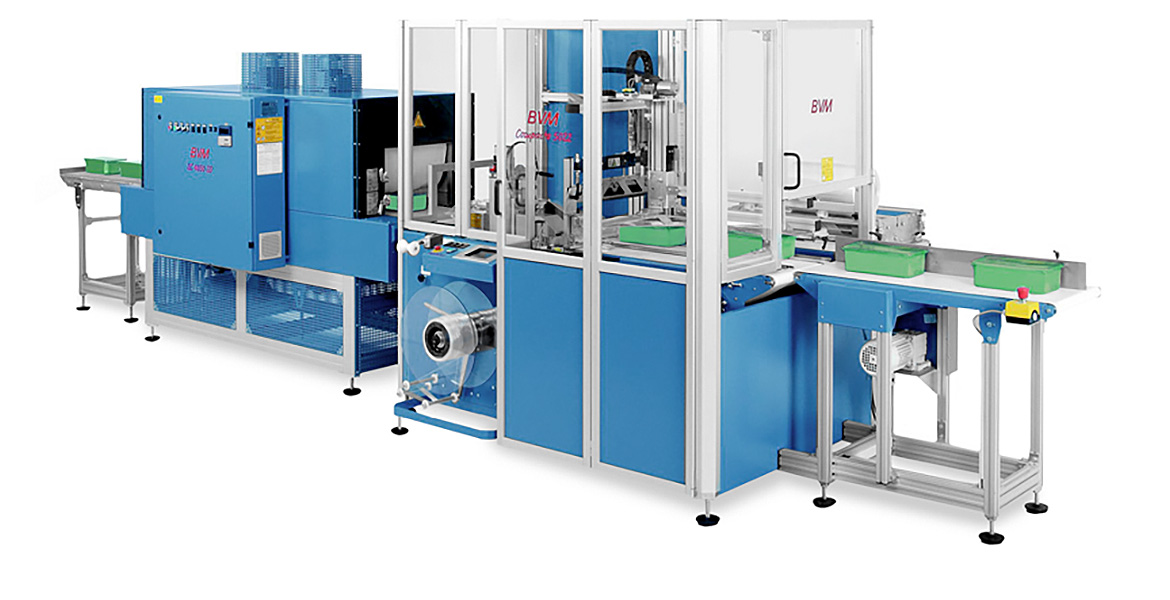

BVM Compacta

Automatic Side Seal Shrink Wrap Systems

The BVM Compacta is designed for fully automatic packaging. Designed to meet a wide variety of applications, the Compacta is completely customizable, offering several different variations, capabilities, orientations, and accessories.
With an inline product flow, the Compacta is sensor-controlled to accommodate both manual or automatic loading. The Compacta’s feeding systems ensure superior performance and make it possible to run production speeds over 100 cycles per minute.
Additional information

Features

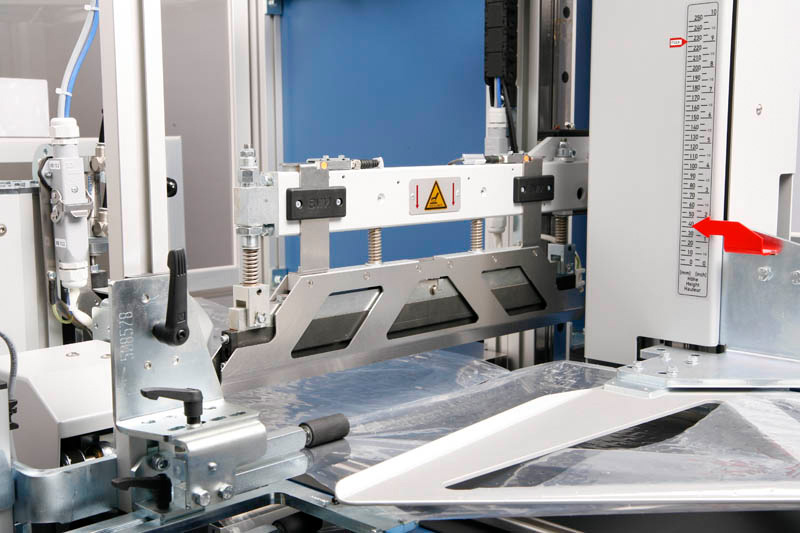

  • Maintenance-free sealing with the electronically controlled sealing drive (servo).

  • Suitable for fully automatic as well as semi-automatic packaging. Working in line, a light-barrier control allows manual and fully automatic feeding.

  • Items are wrapped in centre-folded film that is sealed on the three remaining edges.

  • The heated, constant-temperature sealing system can seal all industry standard films, from Polyethylene to Polyolefin to PVC.

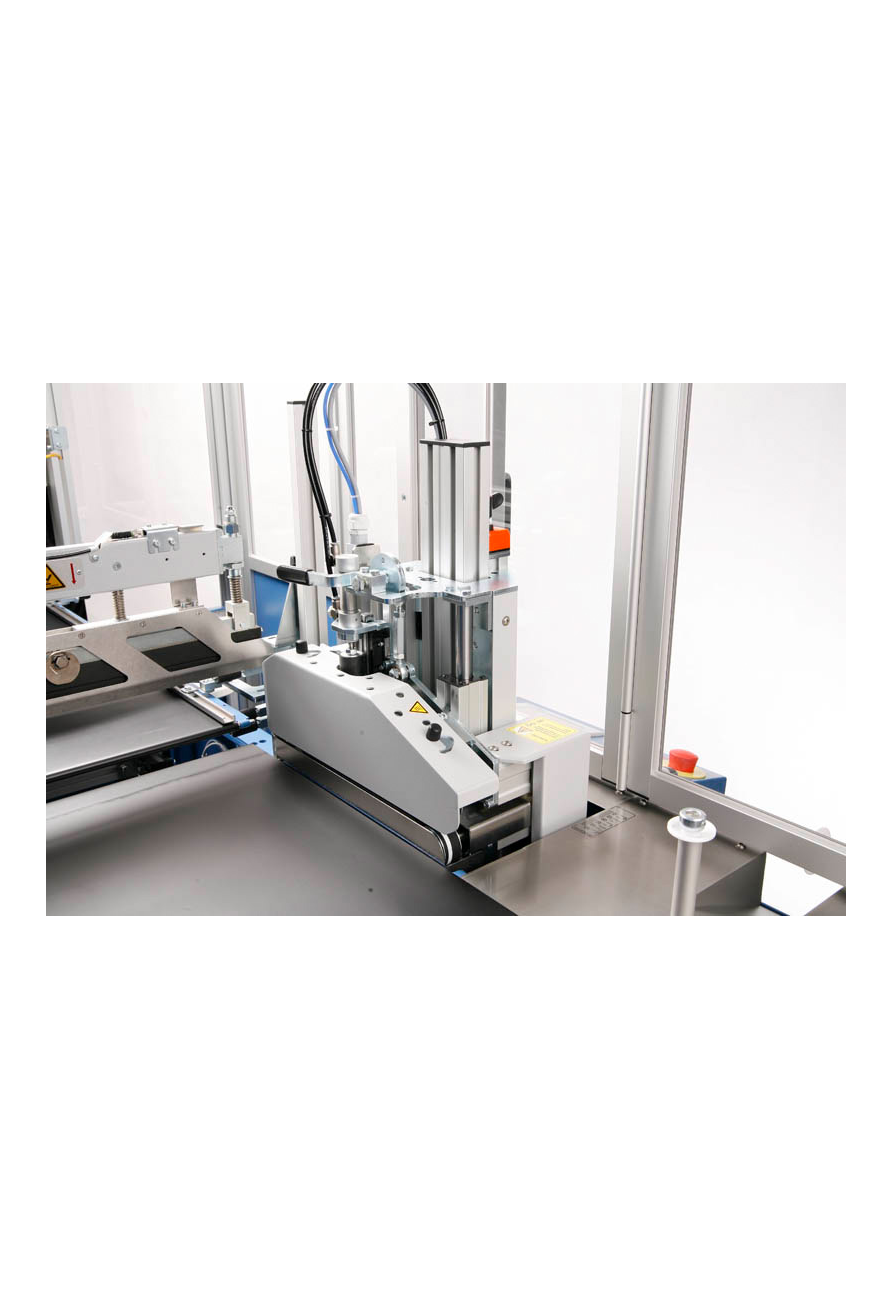

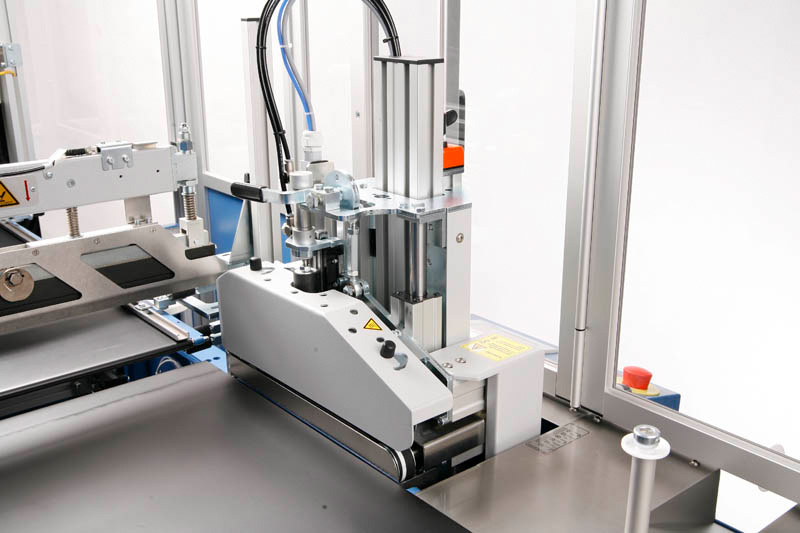

  • The BVM side knife produces neat, high-integrity seals.

  • Product changeovers do not require the turning of hand wheels or adjustments of product guides, therefore changeover times are short and operational reliability is increased.

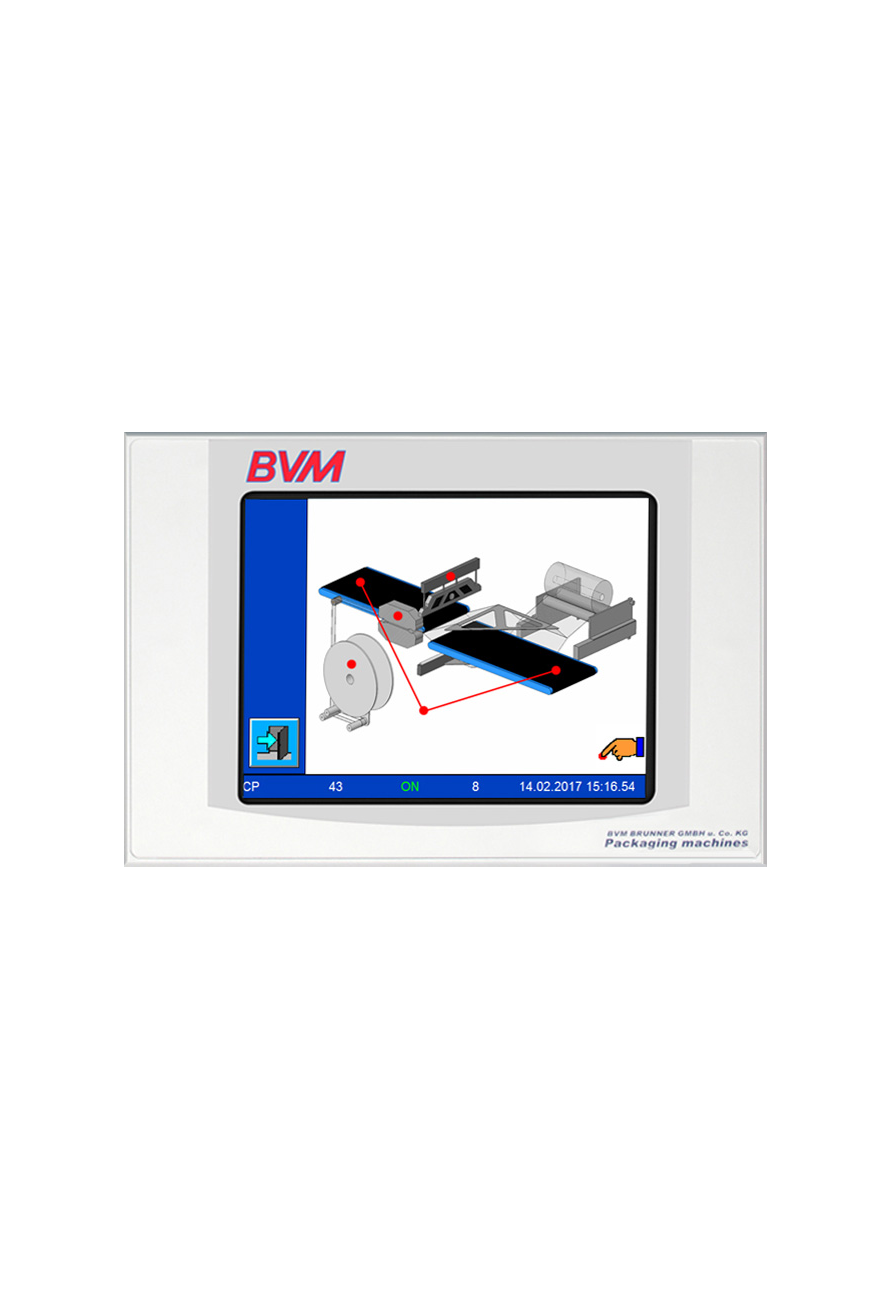

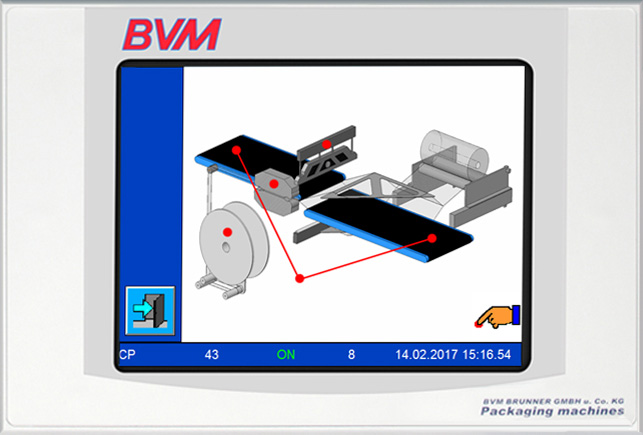

  • BVM Touch Screen Control graphical user interface simplifies operating the machine.

  • Highest production reliability.

  • Wide range of formats, a solution for all packaging tasks.

Specifications

Compacta 5022 Compacta 7522 Compacta 10022
Speed: up to 120 PPM* up to 60 PPM* up to 45 PPM*
Approximate Format: 450 mm 700 mm 950 mm
Sealing Width: 500 mm 750 mm 1000 mm
Passage Height: 220 mm 220 mm 220 mm
Optional Height: - 360 mm 360 mm
Additionally Possible: 650/650 mm 850/850 mm 1150/1150 mm
