BM 400-1600 L

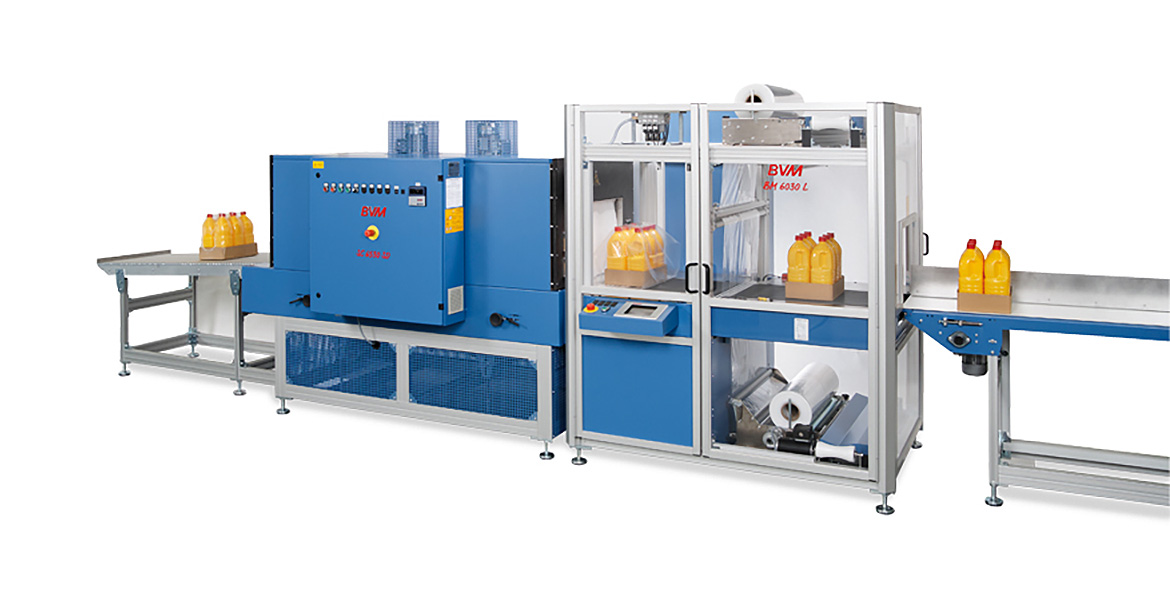

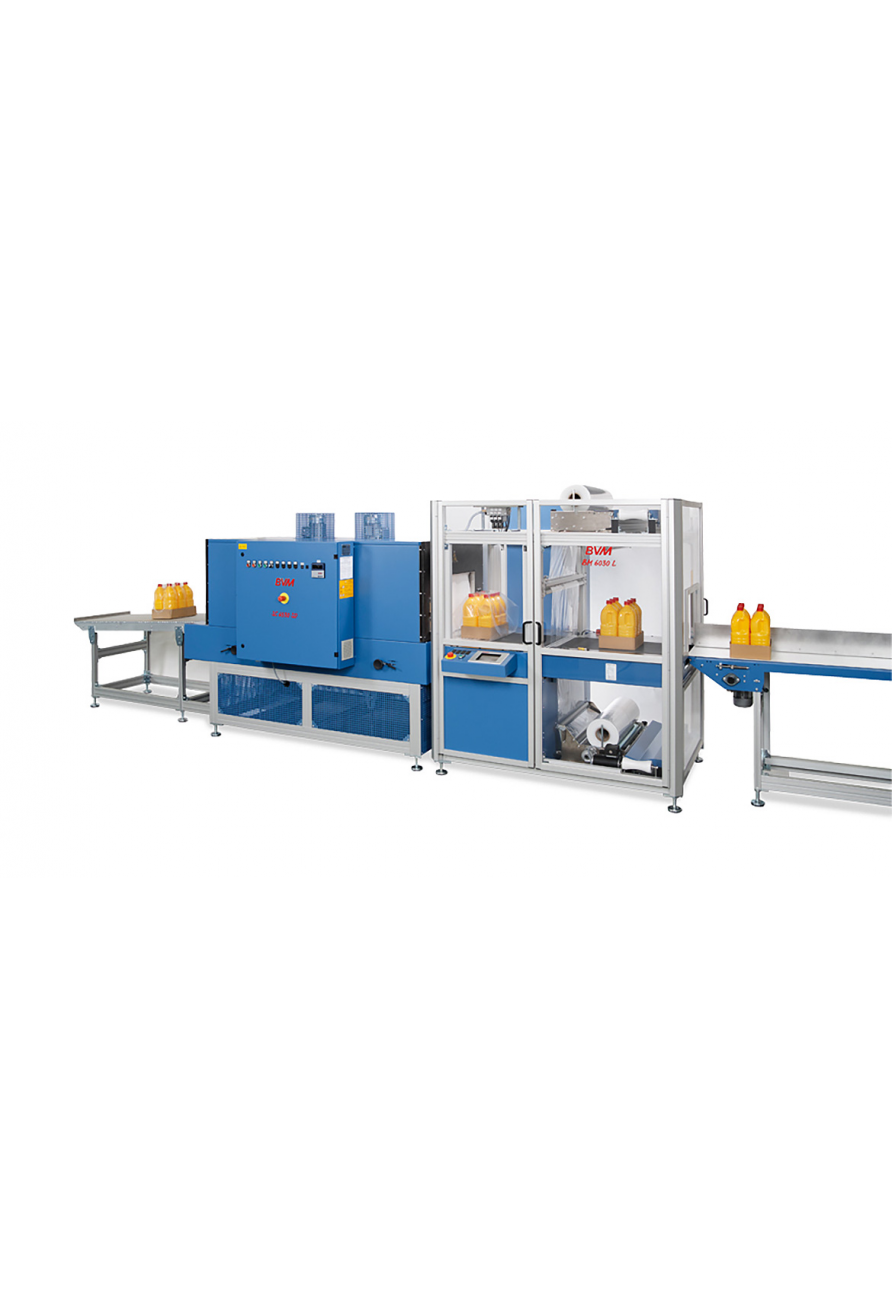

The BVM sleeve sealing machines, available as in line or right angled infeed versions, depending on machine type.
By means of flat film a film sleeve is produced.
Whether as a semiautomatic machine or installed in line with infeed and outfeed conveyors, in right angle execution with mechanical pusher or with film draw-off grippers - packaging machines for a wide range of applications can be produced.
Flexible by using a separate shrink tunnel, perfectly adapted for individual requirements.
Additional information

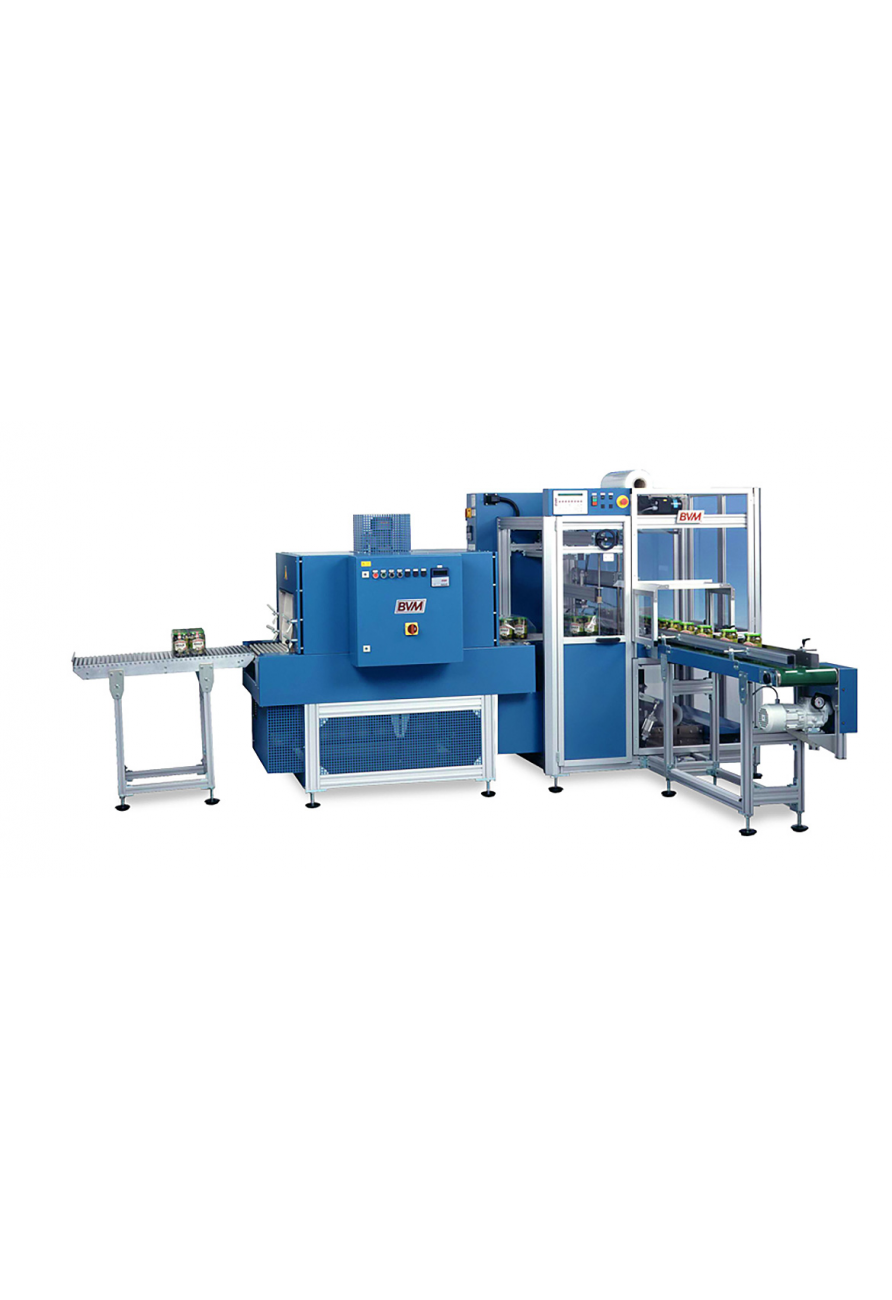

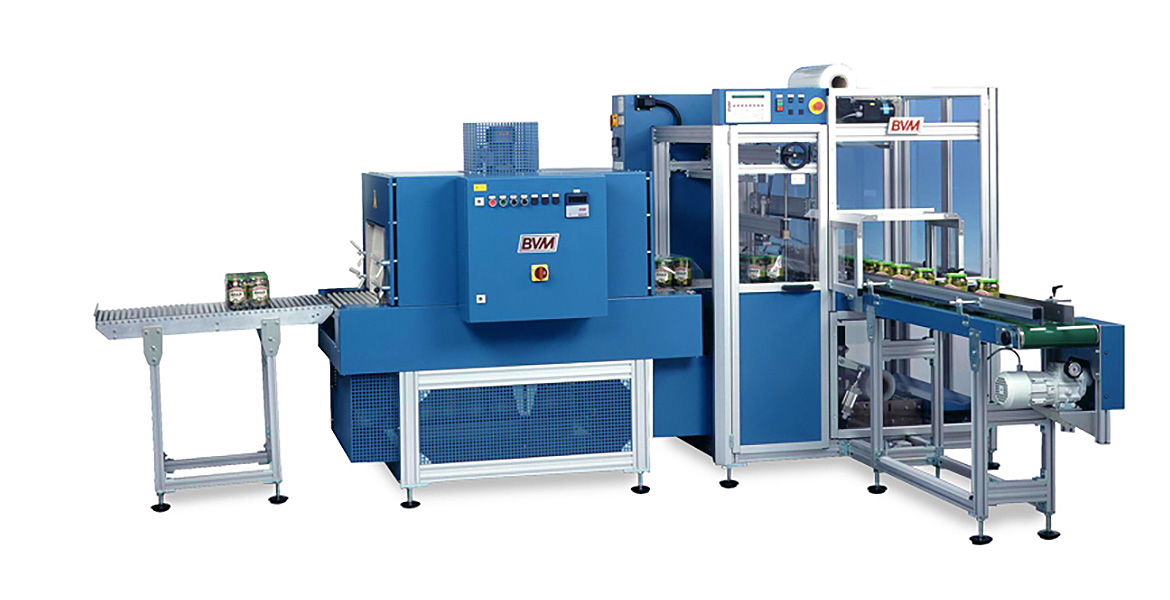

| Technical data | SP 400 - 1600 L | SP 400 - 1600 W | SP 400 - 1600 LE | SP 400 - 1600 LG |
|---|---|---|---|---|
| Execution | working in line | working at right angles | with inset in line |
with gripper trigger in line |
| Welding width | 400 – 1.600 mm | 400 – 1.600 mm | 400 – 1.600 mm | 400 – 1.600 mm |
| Passage height | 300 -1000 mm | 300 -1000 mm | 300 -1000 mm | 300 -1000 mm |
| Capacity | Up to 30 cycles / minute | Up to 30 cycles / minute | Up to 20 cycles / minute | Up to 20 cycles / minute |
