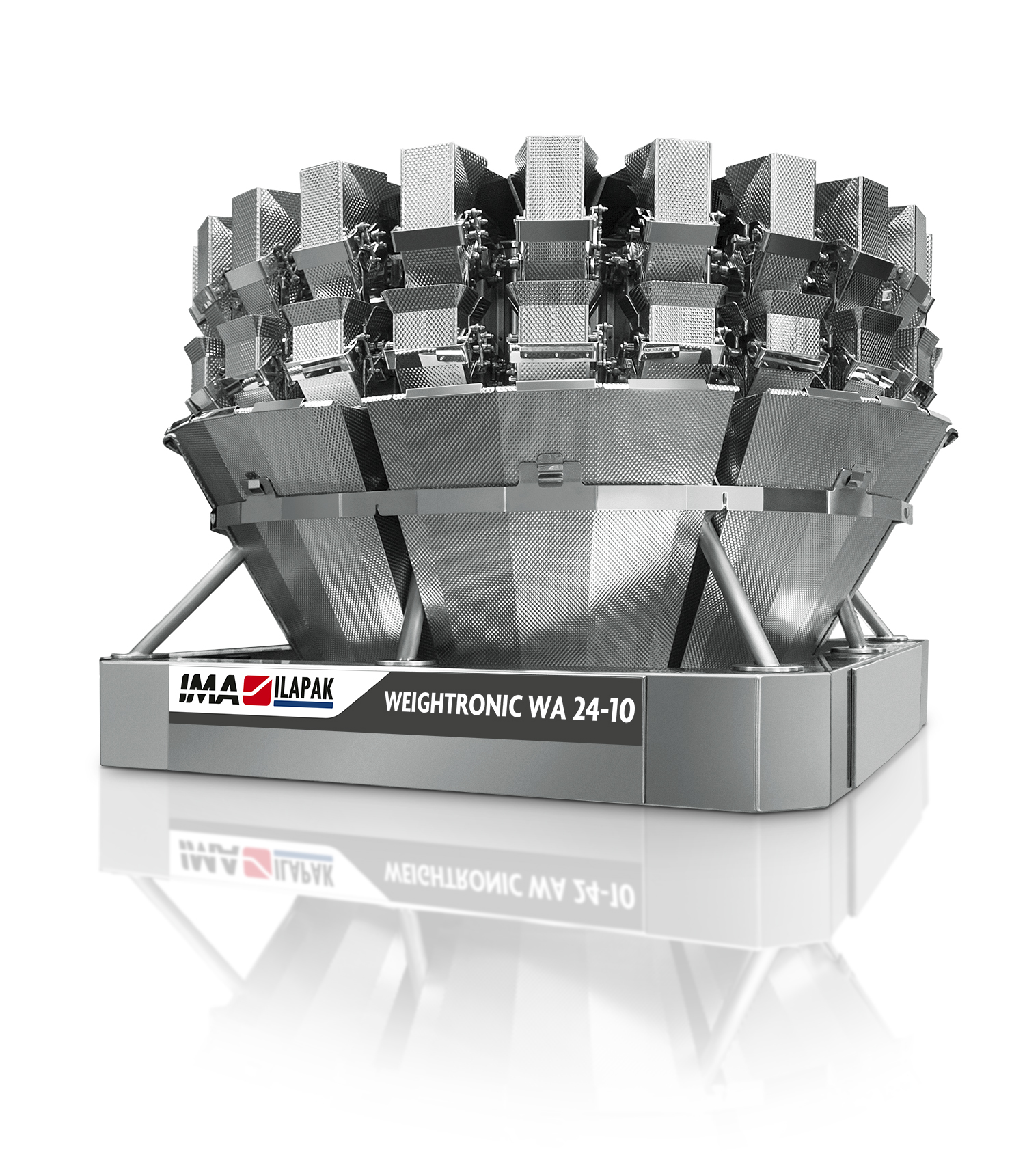

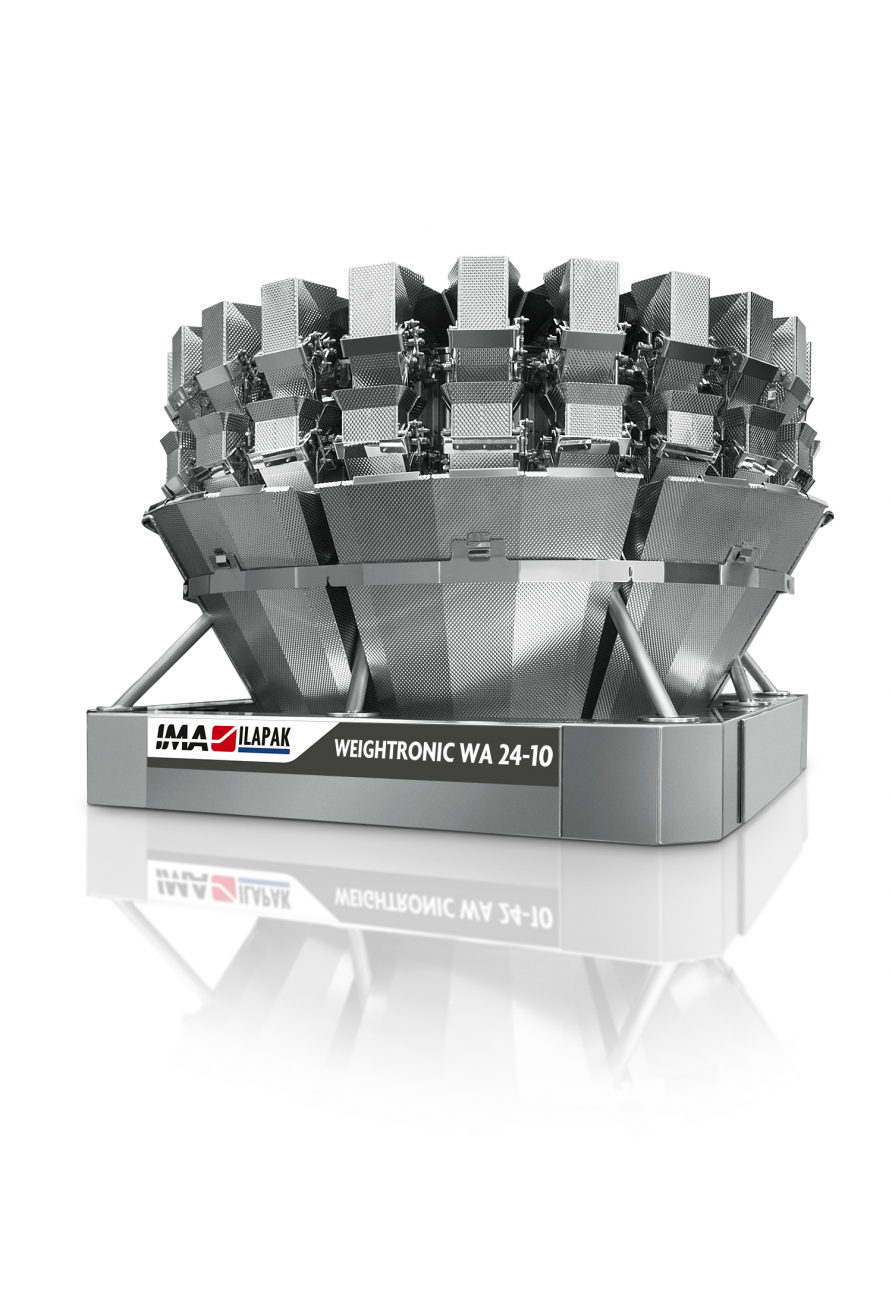

WA 24-10 TWB
Ultra flexible Multi-Head weigher conceived for high-speed, highaccuracy applications. Can handle a wide range of products: dry, fresh and frozen with easy detachable product contact parts available in plain execution, embossed or special coatings, weighing or counting mode, single or product mix, single or dual discharge point execution. Ideal for Bakery, Cheese, Confectionery, Snacks and many other markets.
Additional information
- Max. speed 180 wpm.
- Weigh heads 24.
- Bucket volume 1,0 l.
- Max. discharge volume (single dump) 2,5 l.
- Discharge weight range (single dump) 25g - 1000g.
- Max. piece length 60 mm.
- Product distribution Vibratory or rotary distribution cone with loadcell to control product infeed.
- Product contact parts stainless steel AISI 304. Embossed plate* and special coatings*.
- Drive Springless, high speed stepper motors.
- Loadcells C3 accuracy class, OIML approved R76 class.
- Electronic platform Industrial PC.
- HMI 12” (18” *) colour touch screen with remote control capability (augmented reality feature*).
- Program memory over 1000 recipes.
- Power supply (opt. excluded) 230 Vac±5%, 1 ph, neutral, GND, 50/60 Hz, 2.2 kW, 10 A (5.5 A @ 480 V).
- Compressed air (opt. excluded) 180 l/min @ 7 bar.
- Machine dimensions (W x D x H) 2095 x 2095 x 2367 mm (82.5 x 82.5 x 93.25’’).
- Machine weight 1400 kg.
* optional
