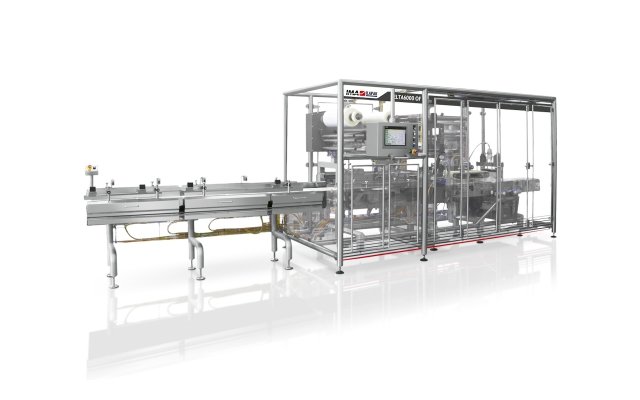

DELTA 6000 OF
The Delta 6000 OF is a new fully modular design flow wrapping machine that can be configured to offer complete IP65 protection, enabling full wash down capability, even of the sealing elements. This machine incorporates a new high-speed hermetic sealing head for MAP applications up to 200ppm. Ideal for cheese, bakery products and wet wipe.
Additional information
- Machine Speed up to 200 cycles per minute. Production output depends on film sealability and product characteristics.
- Film Cut-Off Min 100mm - 4.0” / Max 500mm - 47”. Depending on film and product characteristics.
- Wrapping Materials Laminated, co-extruded and all sealable films.
- Film Reel Max Weight Depending on film reel width, up to 40 kg - 88 lbs.
- Electronic Platform Industrial PC. Other electronic control platform on request i.e. Allen Bradley, Siemens, Elau-Schneider, B&R.
- Power Requirement From 220 to 480 V, 50/60 Hz, 7kVA.
- Compressed Air 6 bar, 200 l/min.
- Machine Weight 1400 Kg - 3100 lbs.
PRODUCT DIMENSIONS
- length Up to 400mm - 15.7” standard.
- width Up to 150mm - 5.9” (jaws 190mm - 7.5”).
- height Up to 100mm - 4.0” standard.
FILM REEL DIMENSIONS
- coreø 76.2mm - 3” standard. 152.4mm - 6” on request.
- outerø 350mm - 13.8” standard for reel web width up to 800-900mm. 400mm - 15.7” on request for reel web width up to 500-650mm.
- width 500mm - 19.7” standard.
