Aluminium Pipe Saddles
Simple.Flexible.Connection

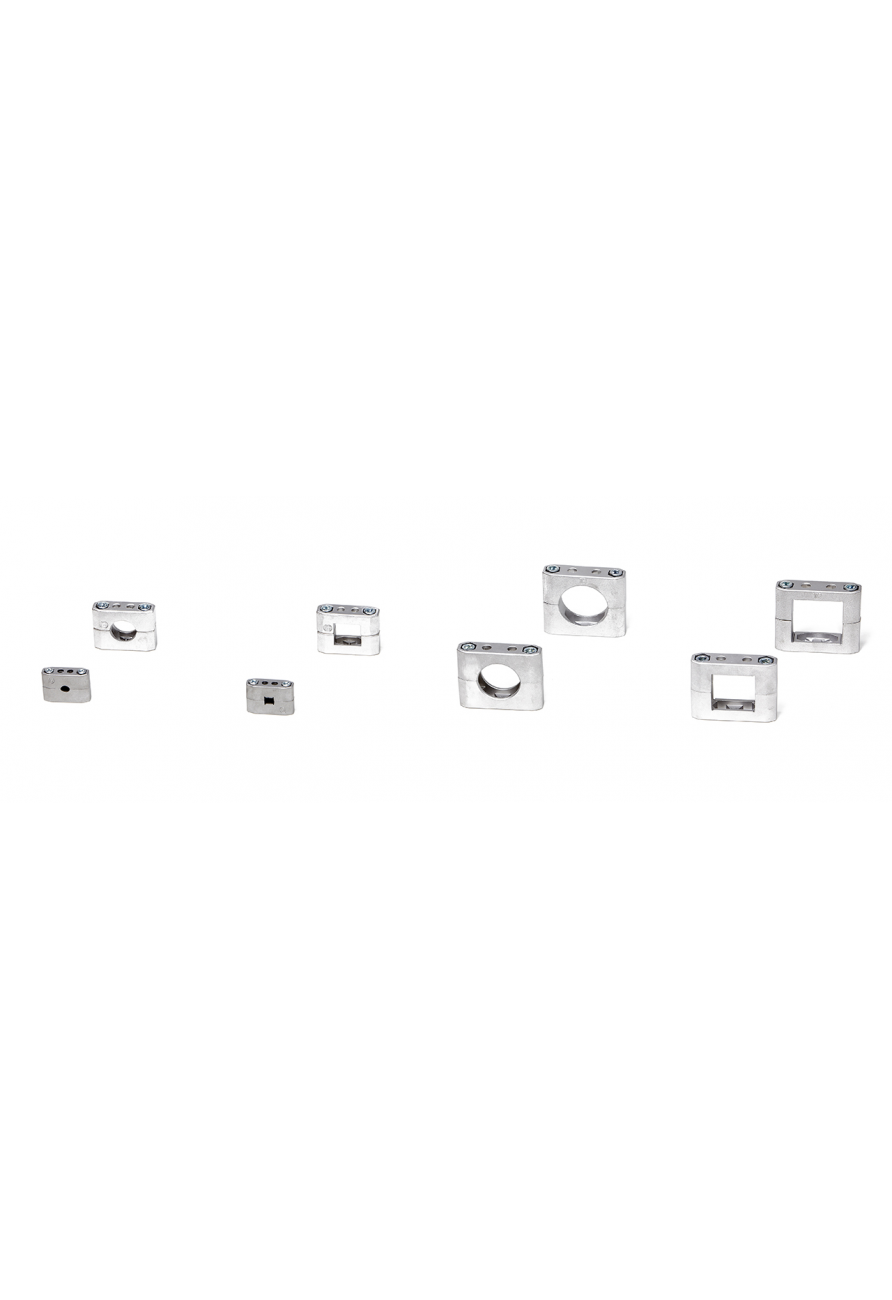

Aluminum pipe saddles are universally applicable elements for fixing tubes or shafts parallel to a mounting surface.
These multi-part components are particularly suitable for retrofitting or difficult to access mounting situation. In addition, this series is available with diameters for round and square tubes or shafts. Square tube connectors are particularly suitable for torsionally stiff constructions.
Diameters for round tubes.
Multi-piece design of
Compact series:
RKR 8, 10, 12, 14, 15, 16, 18 mm.
Standard series:
RSR 20, 25, 30 mm,
RSR 40, 42, 45, 48, 50 mm,
RSR 50, 55, 60 mm.
Diameters for square tubes.
Multi-piece design of
Multi-piece design of
Compact series:
RKV 8, 10, 12, 14, 15, 16, 18 mm.
Standard series:
RSV 20, 25, 30 mm,
RSV 40, 45, 50 mm,
RSV 50, 55, 60 mm.
