Aluminium Pedestal Clamps

Simple.Flexible.Connection

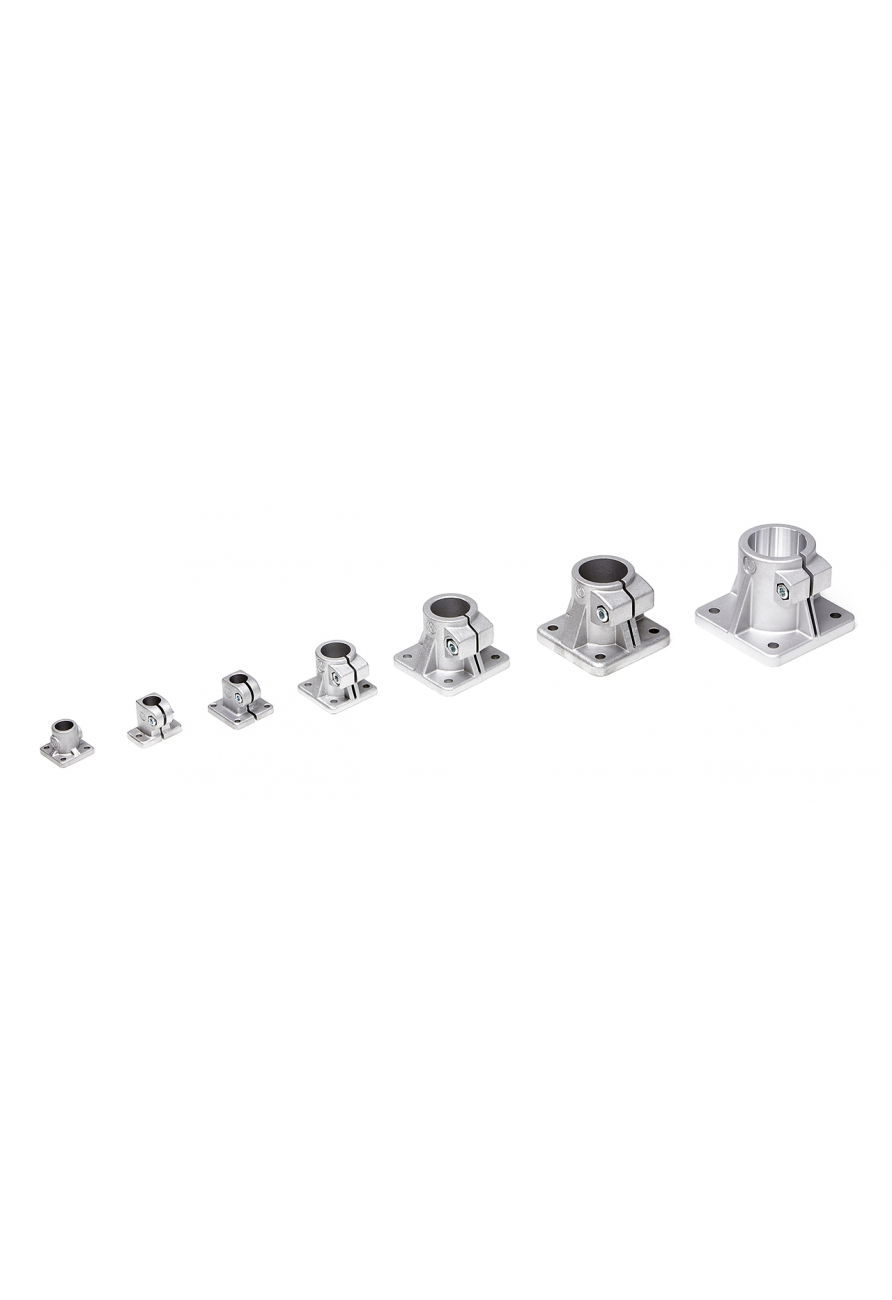

Aluminum pedestal clamp connectors are universally applicable elements with 2, 4, 6 or 8 mounting holes for fixing a tube or a shaft perpendicular to a mounting surface.

These one-piece components with clamping slots develop an extremely precise and stable connection between tube and bore hole due to mechanically machined holes!

For simplified clamping, all stainless steel tube connectors of the compact series have additional relief slots in the through holes. These pedestal clamp connectors also include another relief slot.

The standard series 30 and 50 mm are equipped with carriage bolts, washers and galvanized cap nuts made of stainless steel and are also available as a protected version with seals. These food-safe sealing elements largely prevent the ingress of dirt or cleaning agents both in the threaded area, as well as in the clamping slot and are thus intended for special use in the food, pharmaceutical and chemical industries.

Diameters for round tubes (also for diameter combinations).

One-piece design with grub screw.

Compact Series: FDK 10, 12, 14, 15, 16, 18 mm.

One-piece design with clamping slots.

Compact Series: FUK / FUK-S1 10, 12, 14, 15, 16, 18 mm

Standard Series: FUS 20, 25, 30 mm. FUS 40, 42, 45, 48, 50 mm. FUS 50, 55, 60 mm.

Intermediate Series: FUZ 30, 32, 35, 40 mm.

Multi-piece design of:

Standard Series:

FUR 20, 25, 30 mm.

FUR 40, 42, 45, 48, 50 mm.

FMR 20, 25, 30 mm.

FMR 40, 42, 45, 48, 50 mm.

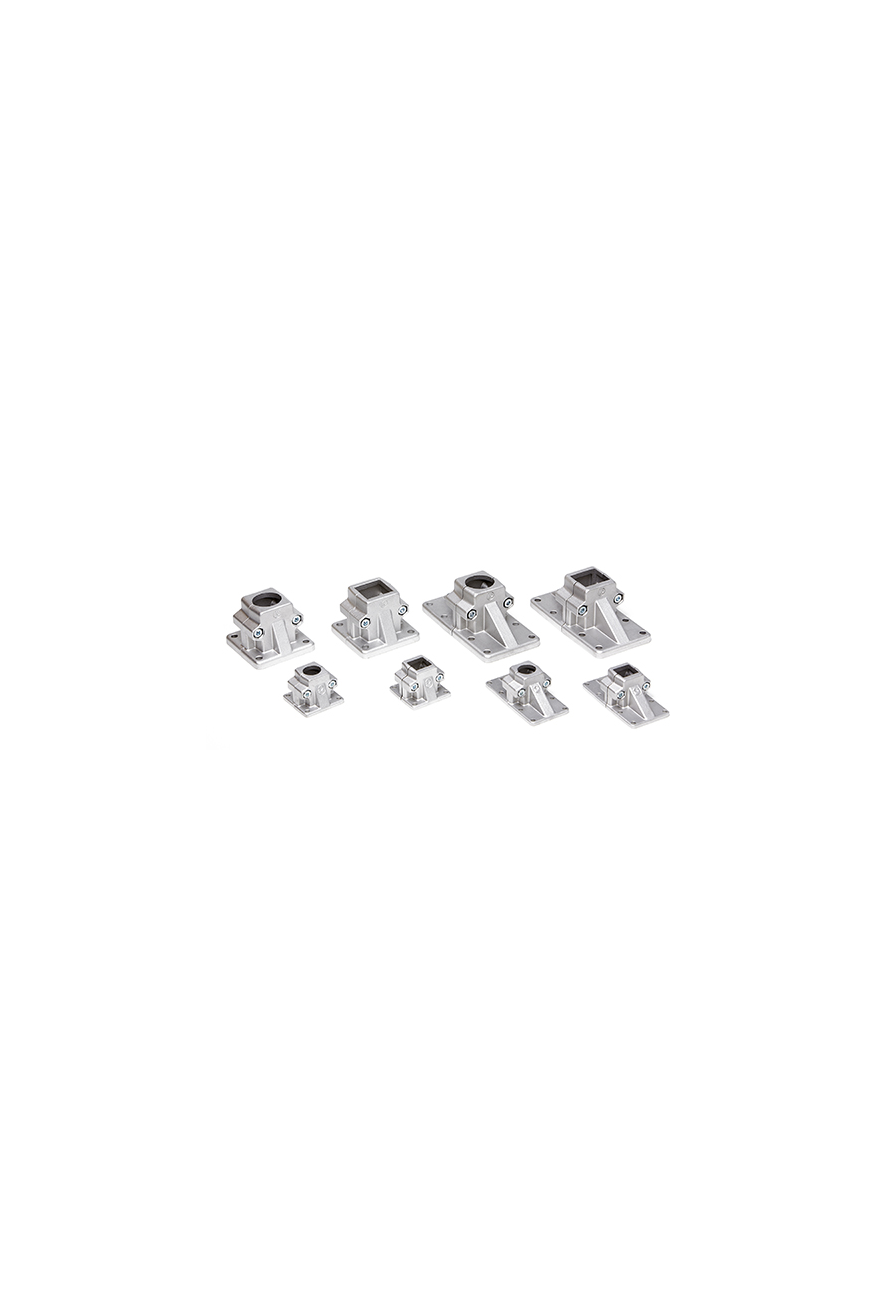

Diameters for square tubes.

Multi-piece design of

Standard Series: FUV 20, 25, 30 mm. FUV 40, 45, 50 mm. FMV 20, 25, 30 mm. FMV 40, 45, 50 mm.

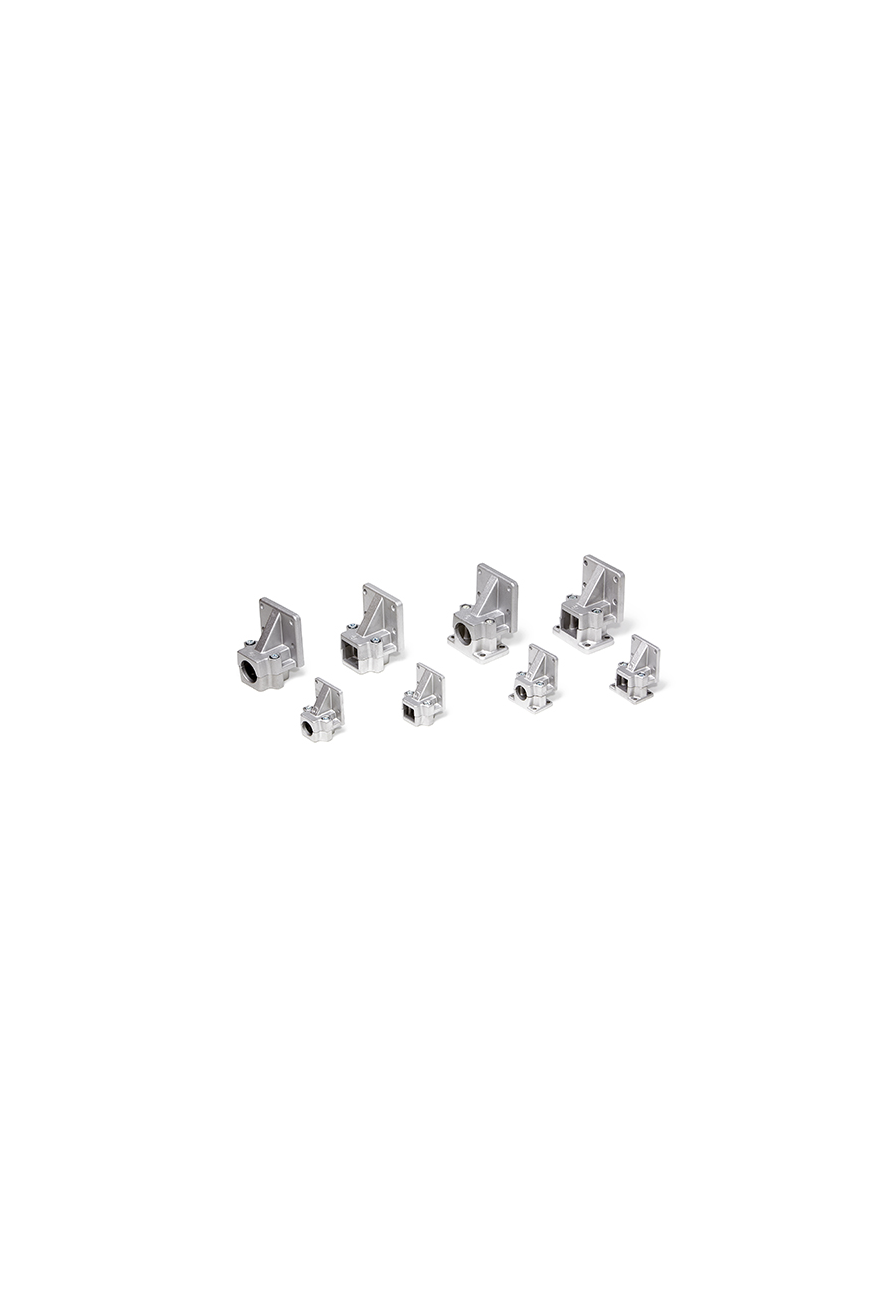

Multi-piece design of

Standard Series: FZR 20, 25, 30 mm. FZR 40, 42, 45, 48, 50 mm. FFR 20, 25, 30 mm. FFR 40, 42, 45, 48, 50 mm.

Diameters for square tubes.

Multi-piece design of

Standard Series:

FZV 20, 25, 30 mm.

FZV 40, 45, 50 mm.

FFV 20, 25, 30 mm.

FFV 40, 45, 50 mm.

Aluminium_Pedestal_Clamps.pdf
