Aluminium Cross Flange Clamps
Simple.Flexible.Connection

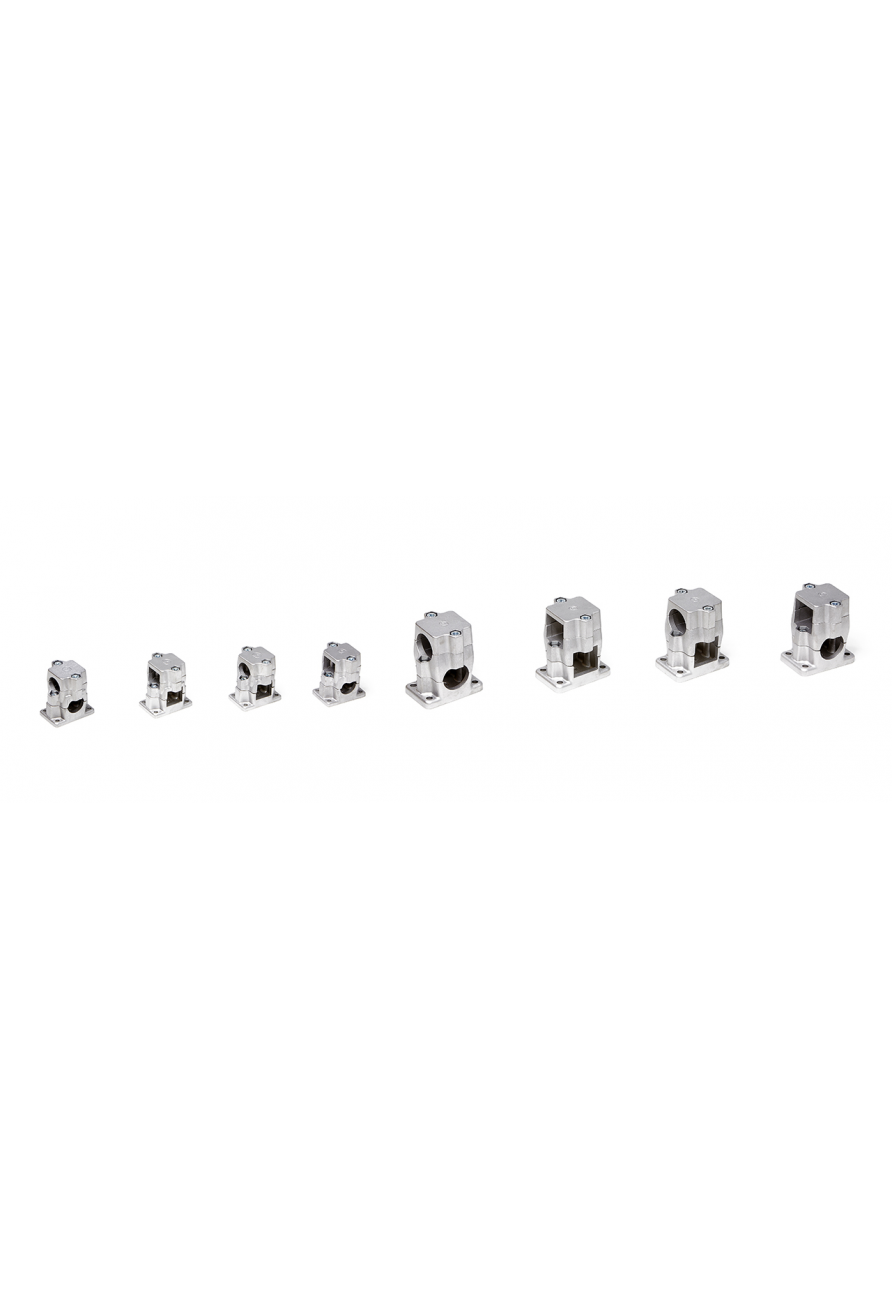

Aluminum cross-flange-clamp connectors are universally applicable elements for connecting tubes or shafts at an angle of 90 ° with 2 offset planes of the through holes with additional mounting option on a mounting surface.
The multi-part components are particularly suitable for retrofitting or difficult to access mounting situation. In addition, this series is available with diameters for round and square tubes or shafts and their combinations. Square tube connectors are particularly suitable for torsionally stiff constructions.
The following series and diameters are available ex stock as standard parts with slide grinded or sandblasted surface, furthermore all parts can be delivered black powder coated, polished or anodized.
Diameters for round tubes (also for diameter combinations)
Multi-piece design of
Standard series:
KFR 20, 25, 30 mm,
KFR 40, 42, 45, 48, 50 mm.
Diameters for square tubes (also for diameter combinations)
Multi-piece design of
Standard series:
KFV 20, 25, 30 mm,
KFV 40, 45, 50 mm.
Diameters for round and square tubes (also for diameter combinations)
Multi-piece design of
Standard series:
KXU 20, 25, 30 mm.
KXU 40, 42, 45, 48, 50 – 40, 45, 50 mm.
KYU 20, 25, 30 mm.
KYU 40, 45, 50 – 40, 42, 45, 48, 50 mm.
